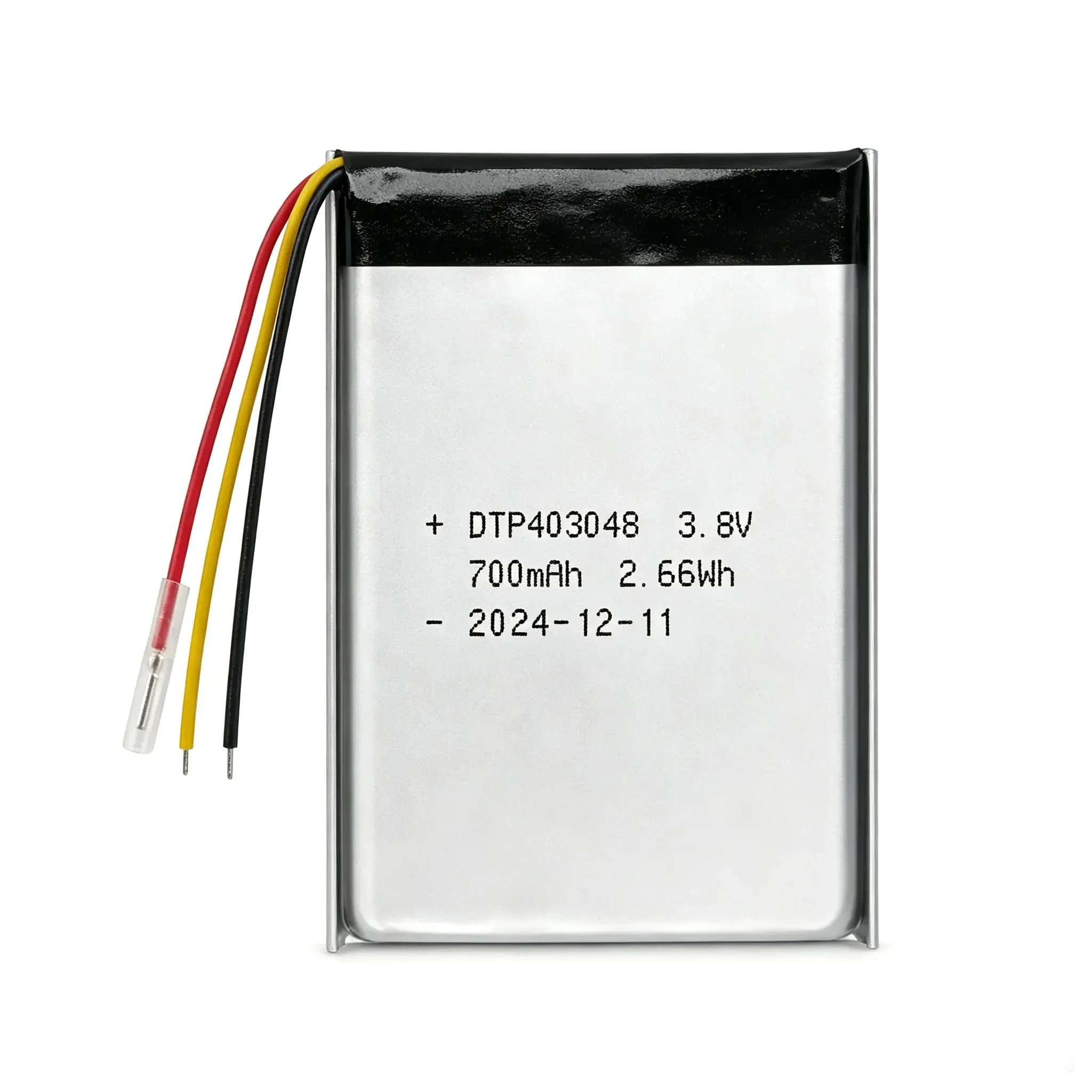

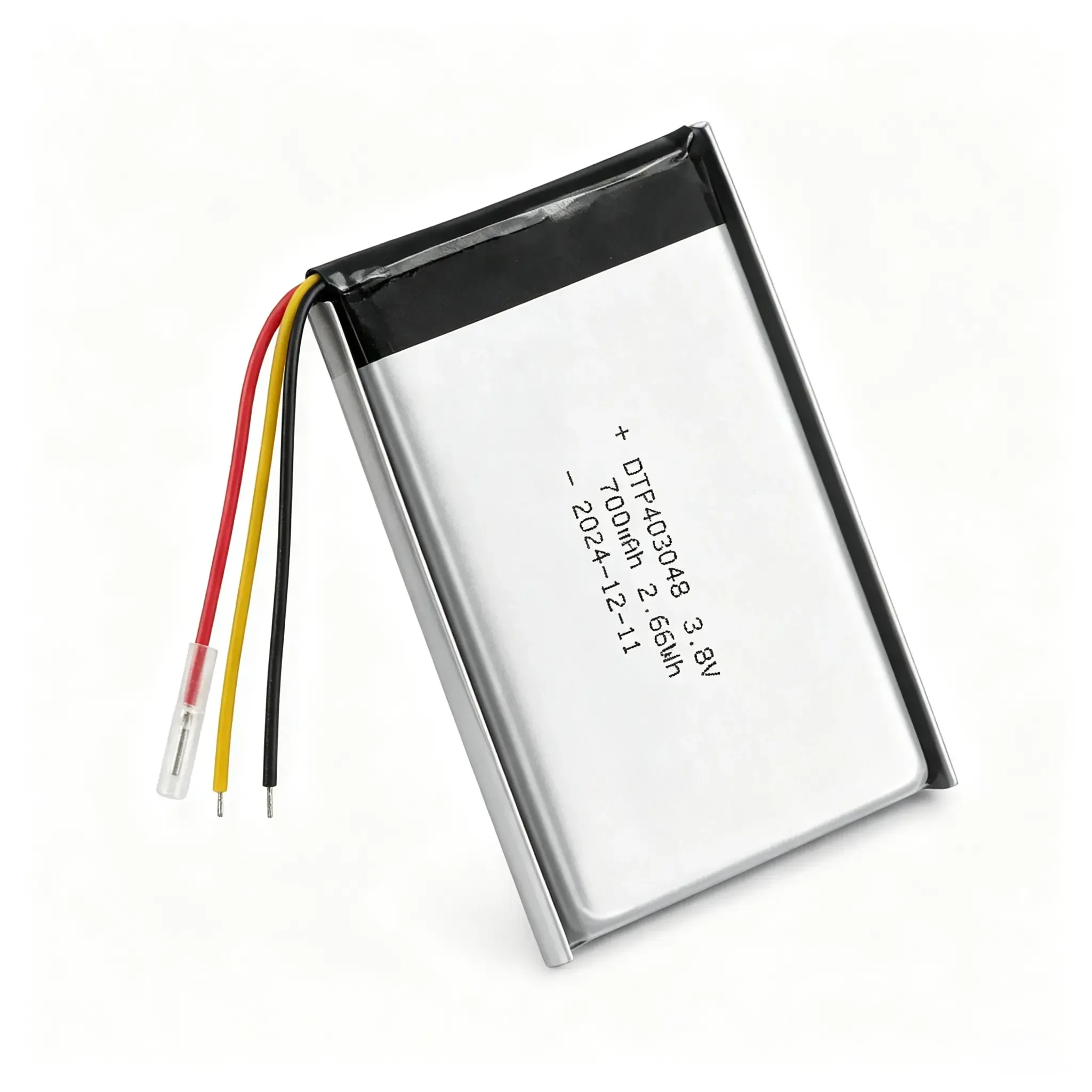

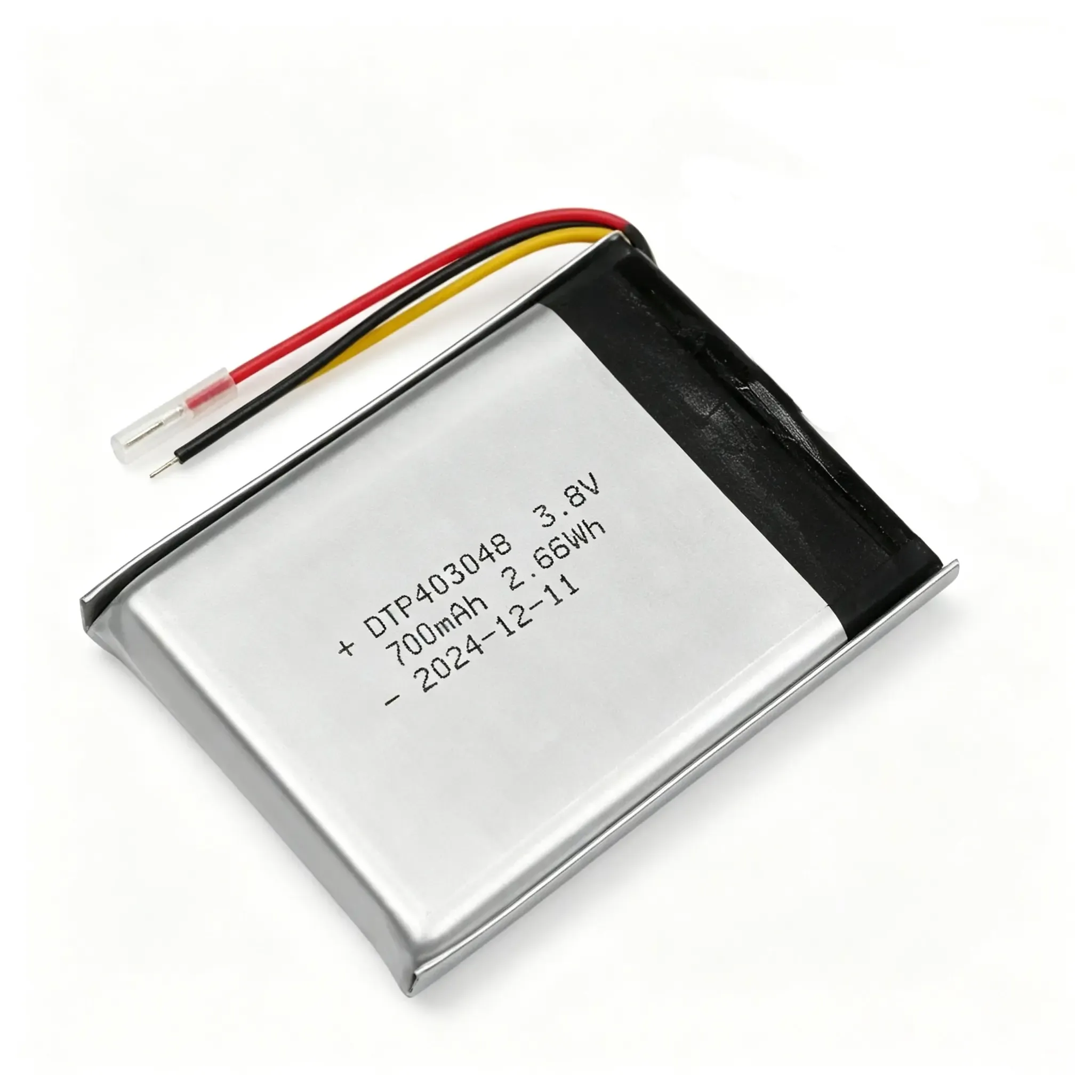

Green Battery DTP403048 700mAh 3.8V 2.66Wh High Discharge Rate Battery Rechargeable Battery Lithium Ion Batteries Pack
Brand: Green Battery|Model: DTP403048
Product Highlights
Green Battery DTP403048 700mAh 3.8V 2.66Wh High Discharge Rate Battery Rechargeable Battery Lithium Ion Batteries Pack
Key attributes
Brand NameGreen Battery
Model NumberDTP403048
Nominal Voltage3.8V
Charging Voltage4.35V
Standard Capacity700mAh
Energy2.66Wh
Dimensions4.2*32*50mm(Max)
Charging CurrentTypically 0.5C to 1C
Discharging CurrentTypically 0.5C to 1C
Discharge Cut-off2.5V
Cycle Life800 cycles
Charge Temp. Range0°C to 45°C
Discharge Temp. Range-20°C to 60°C
Storage Temperature-20°C to 45°C
Operating Temperature-20℃ to 55℃
Cathode MaterialsLiCoO2
Pole postYes
ApplicationPet Products, Consumer Electronics, Toys, Power Tools, Home Appliances, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Place of OriginGuangdong, China
Customization options
›Battery Type(Min. order: 1000 pieces)
Minor customization(Min. order: 1000 pieces)
Drawing-based customization(Min. order: 1000 pieces)
Full customization(Min. order: 1000 pieces)
Finished product inspection(Min. order: 1000 pieces)
Supplier’s capabilities
Response Time≤24h
On-time delivery100%
Shipping: Fee and delivery date to be negotiated. Chat with Green Battery now for details.
Request QuoteProduct Description
Product Overview
403048 Li-Polymer pouch rechargeable battery using Grade A cells, with stable performance, sufficient capacity, low internal resistance and large output current.
Our Advantages
- Grade A Battery: Stable performance, the use of brand new A cell, sufficient capacity and low internal resistance, large output current
- Product Testing: True capacity, no false label, low self-discharge, ready to charge and ready to use, safe liquid leakage, environmental protection
- Quality Silicone Wire: A technician will test the wire for good performance and weld it to the battery's PCB
- Resistance Stability: Test resistance, voltage and battery performance, each type of test before shipment
- Connector: Insulation, corrosion resistance and long service life, and you can customize a variety of terminals you need

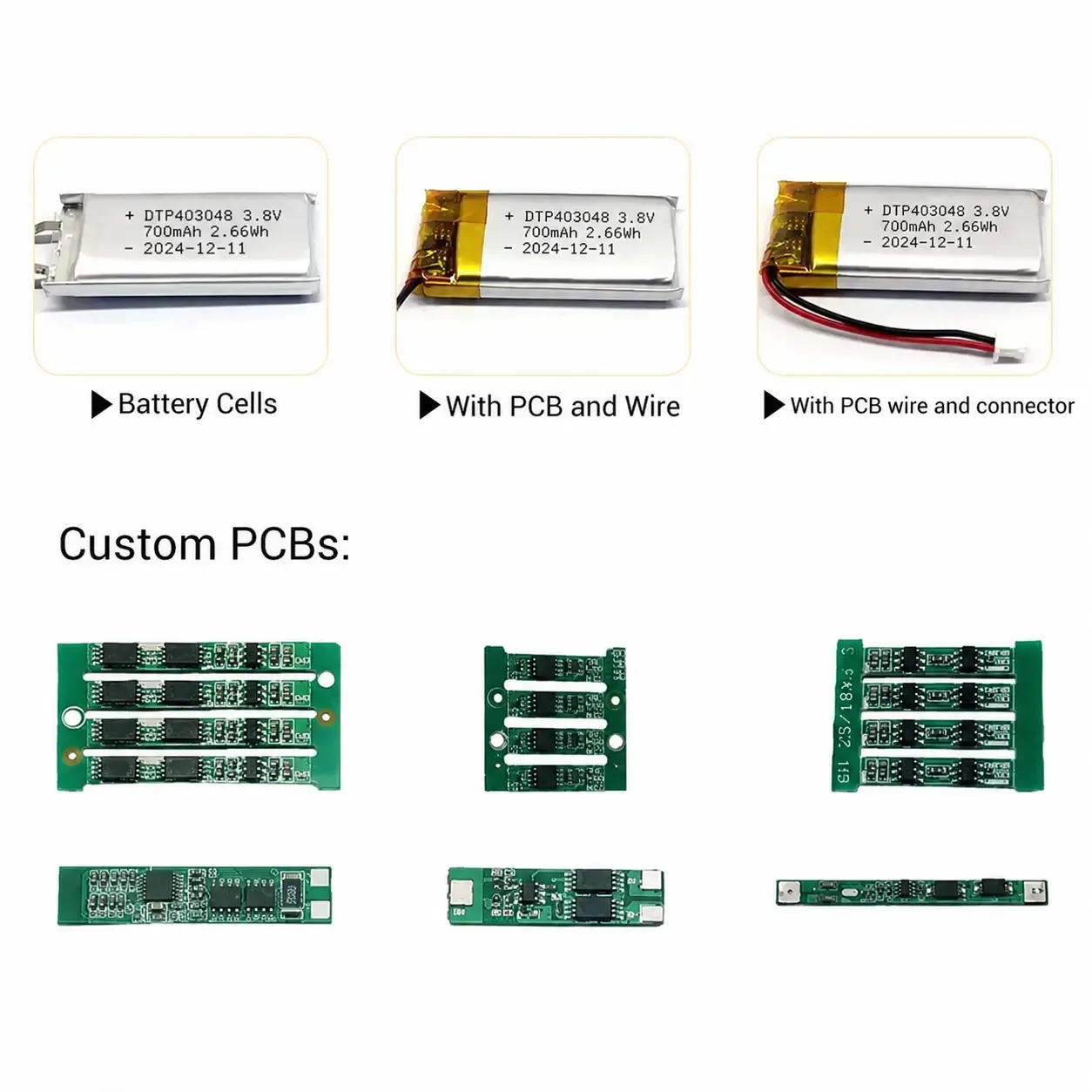

- PCB: New upgraded PCB, with voltage balance and temperature control module, active voltage balance better effect
Specifications
| Battery Type | Li-Polymer |
| Material | LiCoO2/NMC |
| PN | 403048 |
| Voltage/Capacity | 3.8V/700mAh |
| Weight | Approx 20g |
| Shape | Soft pack |
| Dimensions | 4*(T)x30(W)x48(L)mm MAX |
| Package | Inner Tray + Carton |
| Cycle Life | ≥500 times |
| Warranty | 12 months |
| Charge Info | Charge Cut-off Voltage: 4.20V±0.05V; Charging method: CC/CV; Standard Charge Current: 170mA (0.2C); Max Charge Current: 2500mA (1.5C) |
| Discharge Info | Discharge Cut-off Voltage: 3.0V; Max Constant Discharge Current: 170mA/Customized |
| Working Temperature | Standard Charge: 0~+40℃; Standard Discharge: -20~+60℃ |
| Production Lead Time | In stock: 5-7 working days; Out of stock: 20-25 working days |
Production Flow
- Production Visualization: Technicians weld the battery pack in the dust-free workshop to ensure the reliability of production
- Battery To Be Tested: Check whether all indicators of the battery are good, including appearance and performance of the battery; all require sophisticated testing
Packing & Shipping
- Before Packaging: Before shipment, check whether the appearance, capacity, voltage and other conditions of the battery are good. After testing, place the blister plate and wait for packaging
- Packaging: When packing, the battery will be insulated with appropriate blister plate and bubble bag according to the size of the battery to ensure the safety of the battery
