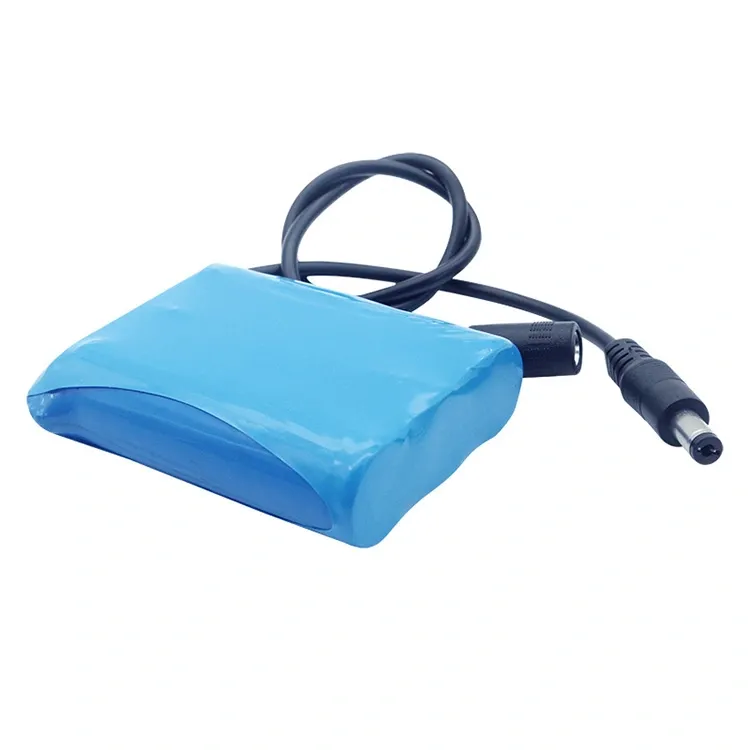

DTP18650-3S1P 11.1V 2200mAh Rechargeable Li-ion Battery Pack
Brand: Green Battery|Model: DTP18650-3S1P
Product Highlights
11.1V 2200mAh 3S1P battery pack with NMC chemistry, PCB circuit protection, and customizable construction for consumer electronics and power tools.
Key attributes
Nominal Voltage11.1V
Nominal Capacity2200mAh (2600mAh option)
Model NumberDTP18650-3S1P
Battery Size20*60*68mm
Cathode MaterialsLiNiMnCoO2 (NMC)
Battery Type11.1V 2200mAh lithium-ion battery pack
Cycle Life500 cycles at 80% DOD
ApplicationToys, Power Tools, Home Appliances, Consumer Electronics
ProtectionPCB circuit protection
Charging Ratio0.5C
Discharge Rate0.5C (customizable)
Operating Temperature(℃)-20~60
Weight150g
Warranty12 months
MOQ1 piece
Place of OriginGuangdong, China
FeaturesReal Capacity, Grade A Cells, Customized Battery Packs Available
Customization options
›Minor customization(Min. order: 1 pieces)
Drawing-based customization(Min. order: 1 pieces)
Sample-based customization(Min. order: 1 pieces)
Full customization(Min. order: 1 pieces)
Supplier’s capabilities
Response Time≤24h
On-time delivery≥97%
Shipping: Fee and delivery date to be negotiated. Chat with Green Battery now for details.
Request QuoteProduct Description
Product Specifications

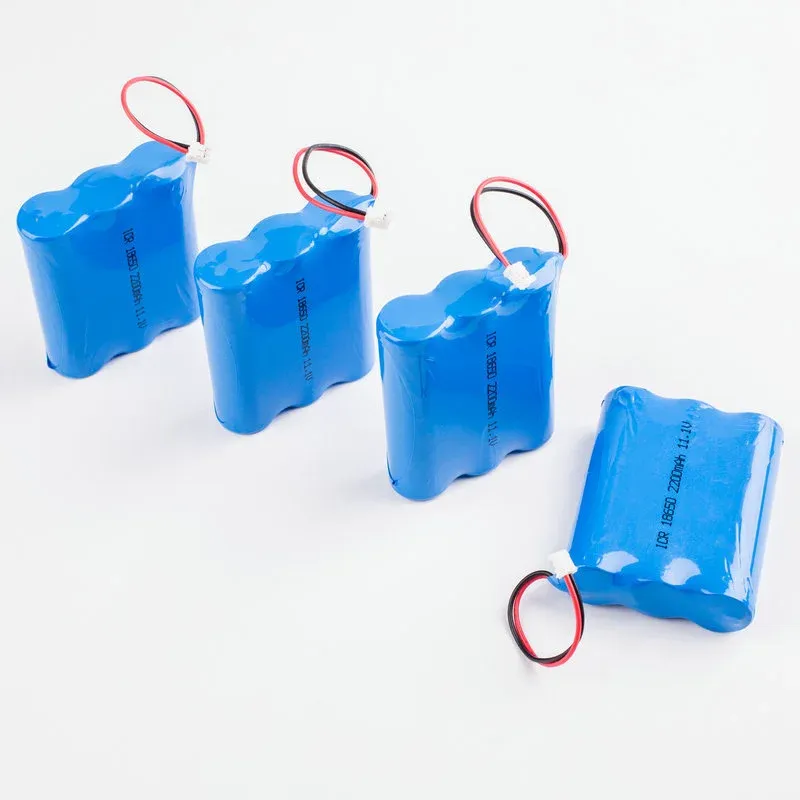

The DTP18650-3S1P is a rechargeable 11.1V lithium-ion battery pack built with 18650 cells in a 3S1P configuration. It provides 2200mAh nominal capacity, with a 2600mAh option, and is designed for consumer electronics, power tools, toys, and home appliances.
- Nominal voltage: 11.1V
- Nominal capacity: 2200mAh; 2600mAh option
- Cathode material: NMC (LiNiMnCoO2)
- Cycle life: 500 cycles at 80% DOD
- Protection: PCB circuit protection against overcharge, overdischarge, and short circuit
- Pack size: 20*60*68mm
- Operating temperature: -20 to 60°C
- Certificates shown by supplier: PSE, KC, UL, FCC, CE, CB, BIS, CQC, RoHS, IEC 62133, MSDS, and UN38.3
