Deep Cycle Cylindrical Lithium Ion Battery DTP 18650 3.7V 2600mAh Rechargeable Li-ion Battery with PCB Circuit Protection
Brand: Green Battery|Model: DTP18650-26E
Product Highlights
Rechargeable 3.7V 18650 lithium-ion battery with 2600mAh capacity, 500-cycle life, PCB circuit protection, and flexible OEM/ODM customization.
Key attributes
Nominal Voltage3.7V
Nominal Capacity2600mAh
Model NumberDTP18650-26E
Battery Size18650

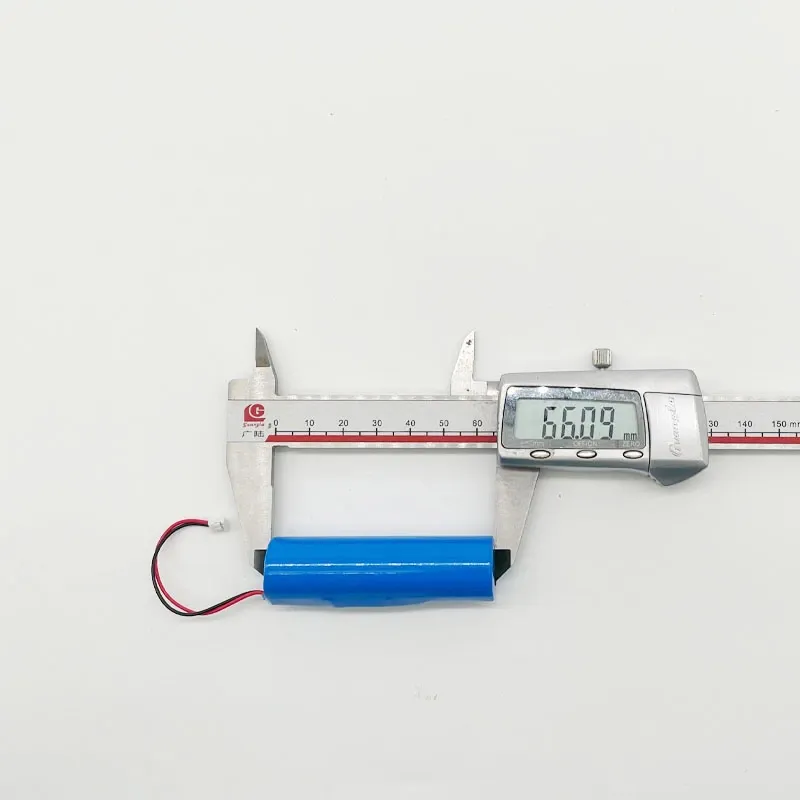

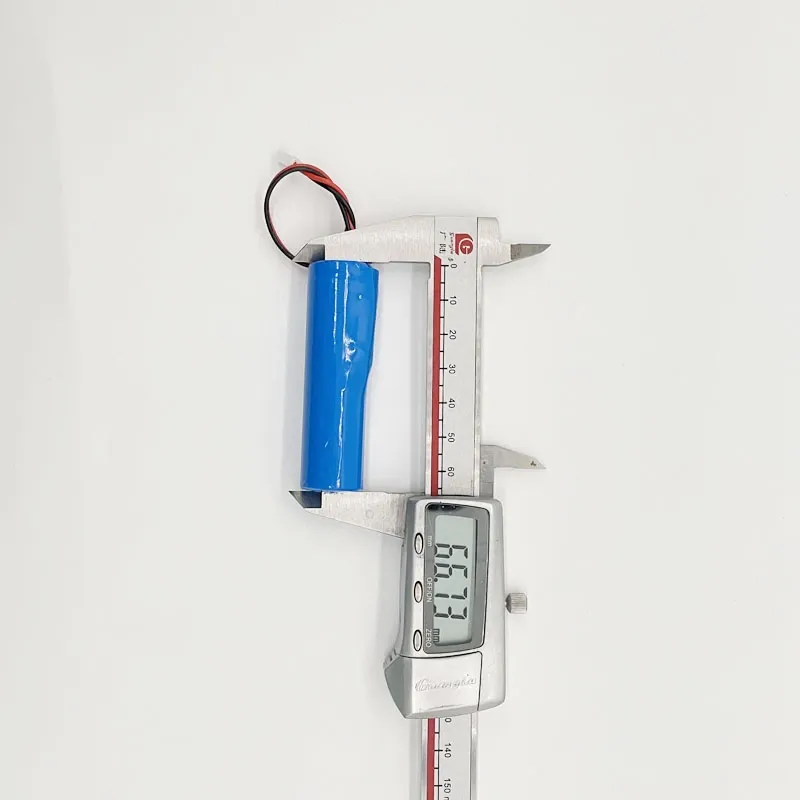

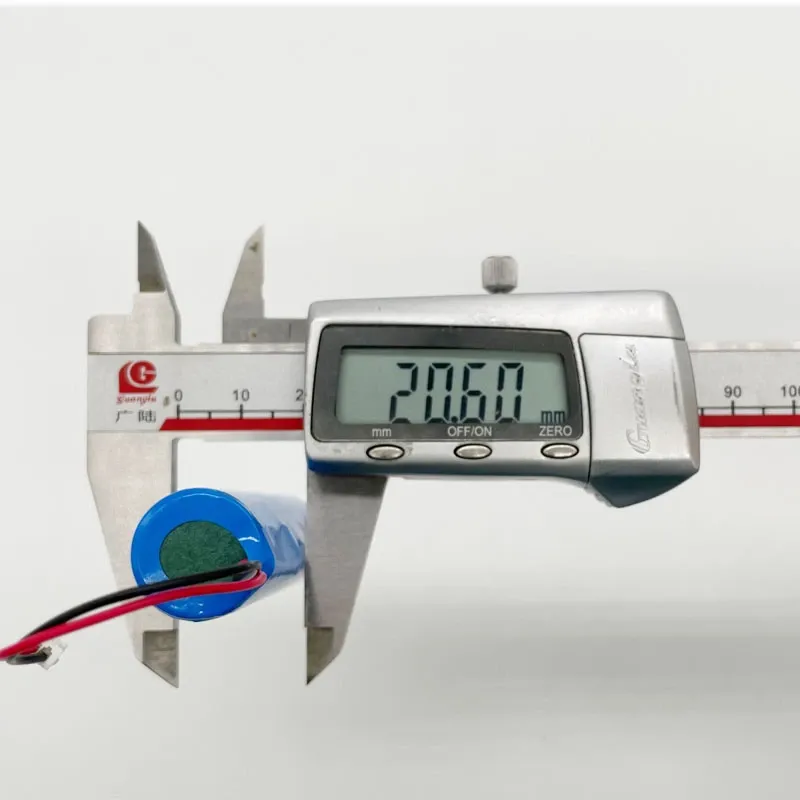

Cell Dimension19*68mm
Cathode MaterialsLiNiMnCoO2
Battery TypeLiquid lithium-ion battery
Cycle Life500 cycles / 80% DOD
ApplicationToys, Power Tools, Home Appliances, Consumer Electronics, Wide applications
Operating Voltage2.4V~4.2V
Charging Ratio0.2C
Discharge Rate0.5C
Operating Temperature(℃)-20~60
ProtectionPCB Circuit
ConnectorSupport customization
Weight48g
Warranty12 Months
Place of OriginGuangdong, China
CertificationCE/RoHS/MSDS/UN38.3, PSE, KC, UL, FCC, CB, BIS, CQC, IEC 62133
MOQ2 pieces
Customization options
›Minor customization(Min. order: 2 pieces)
Drawing-based customization(Min. order: 2 pieces)
OEM/ODM(Min. order: 2 pieces)
Supplier’s capabilities
Response Time≤24h
On-time delivery≥97%
Shipping: Fee and delivery date to be negotiated. Chat with Green Battery now for details.
Request QuoteProduct Description
3.7V 2600mAh 18650 Rechargeable Li-ion Battery
This DTP18650-26E cylindrical lithium-ion battery provides a 3.7V nominal voltage and 2600mAh nominal capacity in a compact 18650 format. It uses LiNiMnCoO2 cathode chemistry and is suitable for consumer electronics, toys, power tools, home appliances, and other applications.
- 500-cycle life at 80% DOD
- 2.4V~4.2V operating voltage range
- PCB circuit protection
- 19*68mm cell dimension and approximately 48g weight
- OEM/ODM and connector customization supported
Specifications
| Parameter | Value |
|---|---|
| Nominal Voltage | 3.7V |
| Nominal Capacity | 2600mAh |
| Model Number | DTP18650-26E |
| Battery Size | 18650 |
| Cell Dimension | 19*68mm |
| Cathode Materials | LiNiMnCoO2 |
| Battery Type | Liquid lithium-ion battery |
| Cycle Life | 500 cycles / 80% DOD |
| Operating Voltage | 2.4V~4.2V |
| Charging Ratio | 0.2C |
| Discharge Rate | 0.5C |
| Operating Temperature(℃) | -20~60 |
| Protection | PCB Circuit |
| Connector | Support customization |
| Weight | 48g |
| Warranty | 12 Months |
| Certification | CE/RoHS/MSDS/UN38.3, PSE, KC, UL, FCC, CB, BIS, CQC, IEC 62133 |
| MOQ | 2 pieces |
