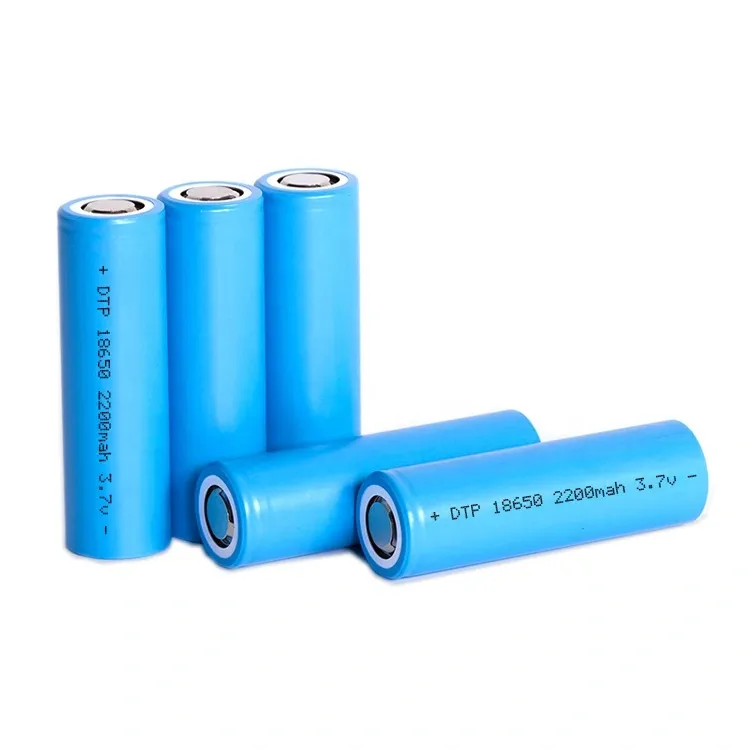

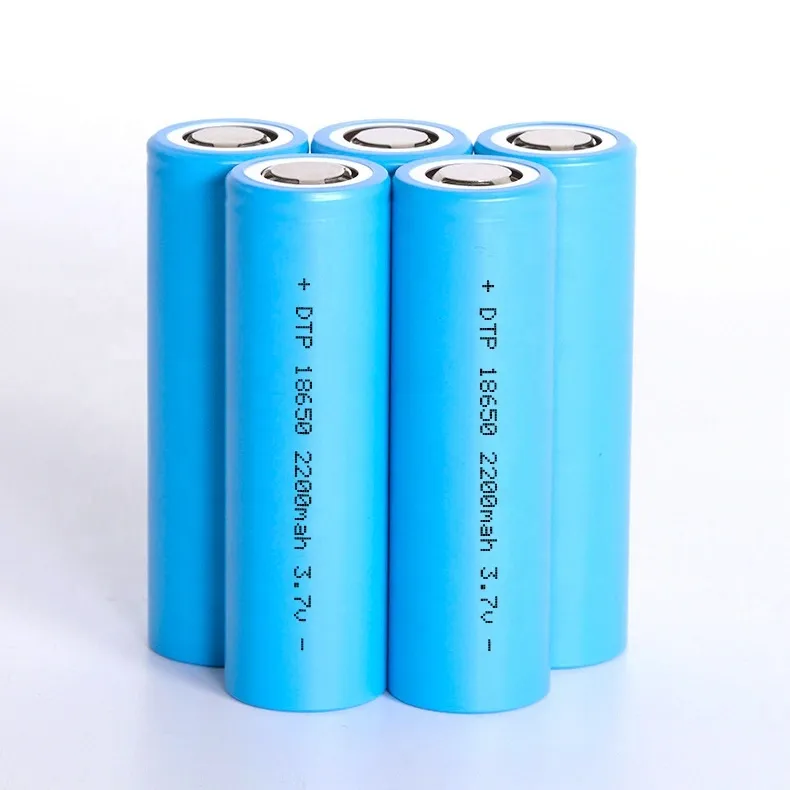

3.7V 2200mAh 18650 Rechargeable Li-ion Cylindrical Battery with Protection Circuit and Connector
Brand: Green Battery|Model: DTP18650-22E
Product Highlights
Rechargeable 3.7V 18650 cylindrical lithium-ion battery with 2200mAh nominal capacity, multiple capacity options, 500-cycle life, and protection circuit support.
Key attributes
Nominal Voltage3.7V
Nominal Capacity2200mAh
Capacity Options2000mAh, 2200mAh, 2600mAh, 3000mAh, 3500mAh
Model NumberDTP18650-22E
Battery Size18650
Cell Dimension18*65mm
Cathode MaterialsLiNiMnCoO2 (NMC)
Battery TypeLiquid lithium-ion battery
Cycle Life500 cycles
ApplicationToys, Power Tools

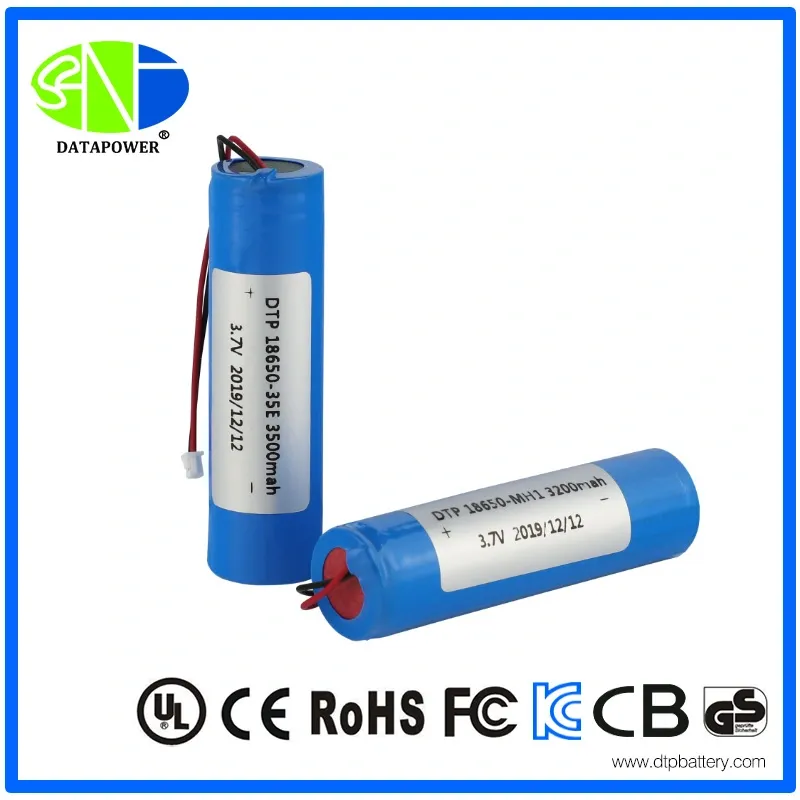

ProtectionProtection circuit and connector
Charging Voltage4.2V
Discharge Cut-off Voltage3.0V
Operating Temperature(℃)-20~60
Weight45g
Warranty1 year
MOQ2 pieces
Place of OriginGuangdong, China
CertificationCE/KC/CB/MSDS/UN38.3/IEC62133
Customization options
›Minor customization(Min. order: 2 pieces)
Drawing-based customization(Min. order: 2 pieces)
Sample-based customization(Min. order: 2 pieces)
Full customization(Min. order: 2 pieces)
Supplier’s capabilities
Response Time≤24h
On-time delivery≥97%
Shipping: Fee and delivery date to be negotiated. Chat with Green Battery now for details.
Request QuoteProduct Description
Product Specifications
This rechargeable 3.7V 18650 cylindrical lithium-ion battery is available in 2000mAh, 2200mAh, 2600mAh, 3000mAh, and 3500mAh capacity options. The 2200mAh model uses an NMC cathode, provides a 500-cycle life, and supports protection circuit and connector configurations.
- Nominal voltage: 3.7V
- Nominal capacity: 2200mAh
- Minimum capacity: 2200mAh at 0.2C discharge
- Charging voltage: 4.2V
- Discharge cut-off voltage: 3.0V
- Cell dimension: 18*65mm
- Operating temperature: -20 to 60°C
- Applications: toys and power tools
- Certification: CE, KC, CB, MSDS, UN38.3, and IEC 62133
Specifications
| Parameter | Value |
|---|---|
| Nominal Voltage | 3.7V |
| Nominal Capacity | 2200mAh |
| Capacity Options | 2000mAh, 2200mAh, 2600mAh, 3000mAh, 3500mAh |
| Model Number | DTP18650-22E |
| Battery Size | 18650 |
| Cell Dimension | 18*65mm |
| Cathode Materials | LiNiMnCoO2 (NMC) |
| Battery Type | Liquid lithium-ion battery |
| Cycle Life | 500 cycles |
| Protection | Protection circuit and connector |
| Charging Voltage | 4.2V |
| Discharge Cut-off Voltage | 3.0V |
| Operating Temperature(℃) | -20~60 |
| Weight | 45g |
| Warranty | 1 year |
| MOQ | 2 pieces |
| Certification | CE/KC/CB/MSDS/UN38.3/IEC62133 |
