Ultra Thin 3.6V 10000mAh Liquid Battery for Model DTP7540135 for Consumer Electronics CE ROHS Certificate 12-Month
Product Highlights
The model number DTP7540135 refers to a lithium polymer (Li-Po) battery, and its naming convention typically indicates its dimensions: approximately 10.5mm in thickness, 55mm in width, and 65mm in length. Due to its high capacity (often rated at 10,000mAh for this specific model configuration) and relatively slim, flat profile, it is commonly used in Consumer Electronics that require a balance between compact size and high energy density.
Key attributes
Customization options
›Product Description

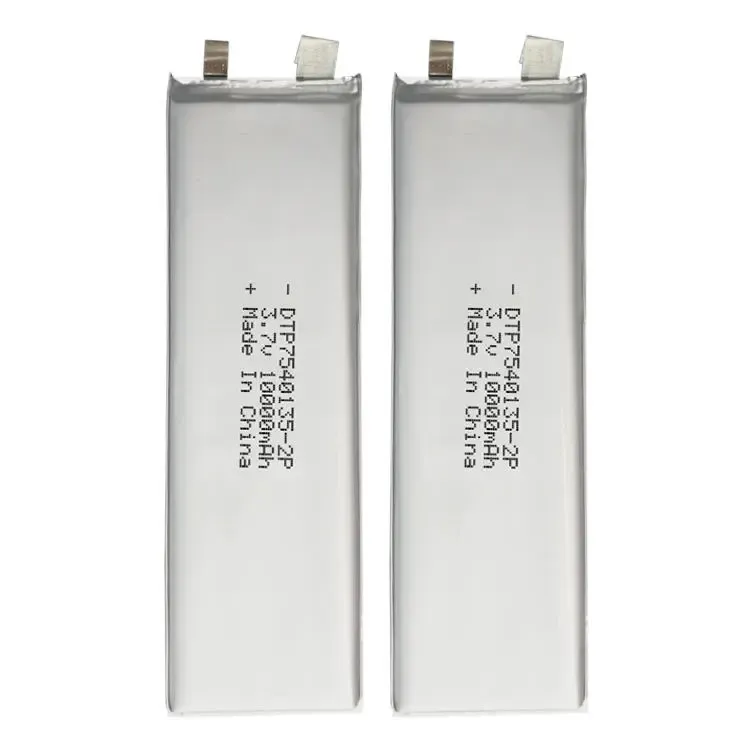

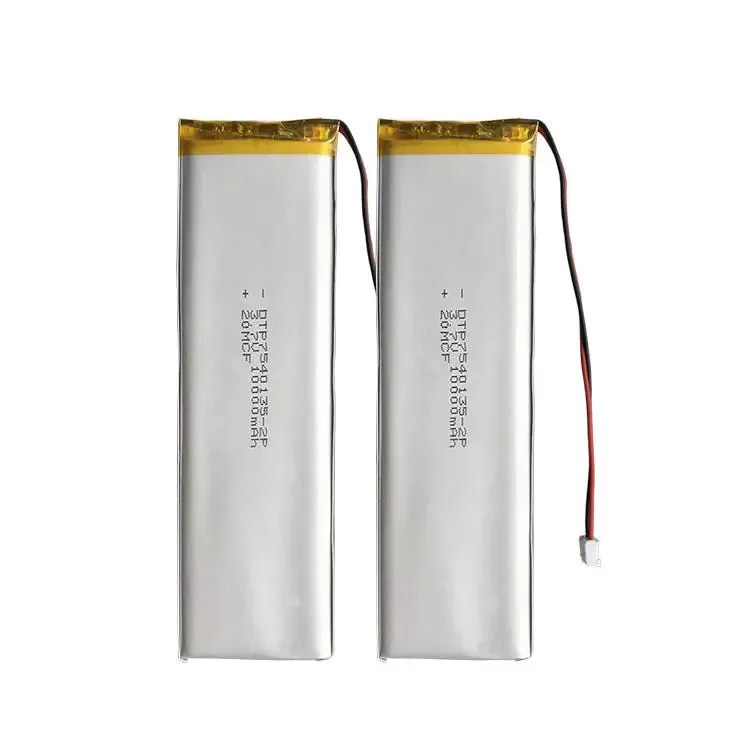

Ultra Thin 3.6V 10000mAh Liquid Battery DTP7540135

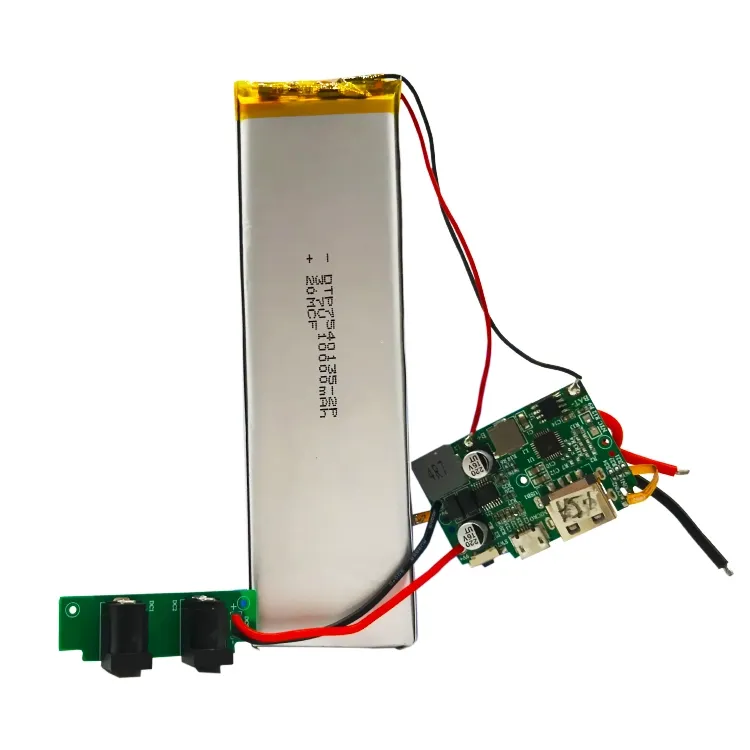

Ultra-thin 3.6V 10000mAh liquid lithium battery for Portable Power Banks，Tablet PCs and E-readers，High-Performance Portable Medical Devices，Professional Portable Electronics， Large-Capacity Smart Home/IoT Devices with 500-cycle life.
Key Specifications
Nominal Voltage: 3.6V; Nominal Capacity: 10000mAh; Model Number: DTP105565; Battery Type: Liquid; Cycle Life: 500 cycles; Application: Consumer Electronics; Operating Temperature: -20~60°C; Certification: CE/RoHS; MOQ: 1 piece.
| Application | Consumer Electronics |
| Battery Type | Liquid |
| Cycle Life | 500 cycles |
| Cathode Materials | LiNiMnCoO2 |
| Max Load Quantity(cells) | 2 |
| Operating Temperature(℃) | -20~60 |
| Model Number | DTP105565 |
| Place of Origin | Guangdong, China |
| Brand Name | DTP BATTERY |
| Weight | 200g |
| Warranty | 12 Months |
| Cycle life | 500 Times 80% DOD |
| Material | Li(NiCoMn)O2 |
| Discharge Cut-off Voltage | 2.75V |
| Discharge rate | 1C |
| Charge current | Max 0.5C |
| Charge Cut-off voltage | 4.2V |
| Continuous discharge current | 1C |
| OEM/ODM | yes |
| Features | 3.6v 10000mah battery |
| Packaging and delivery | |
|---|---|
| Selling Units | Single item |
| Single package size | 1*55*65mmmm |
| Single gross weight | 0.2 kg |
