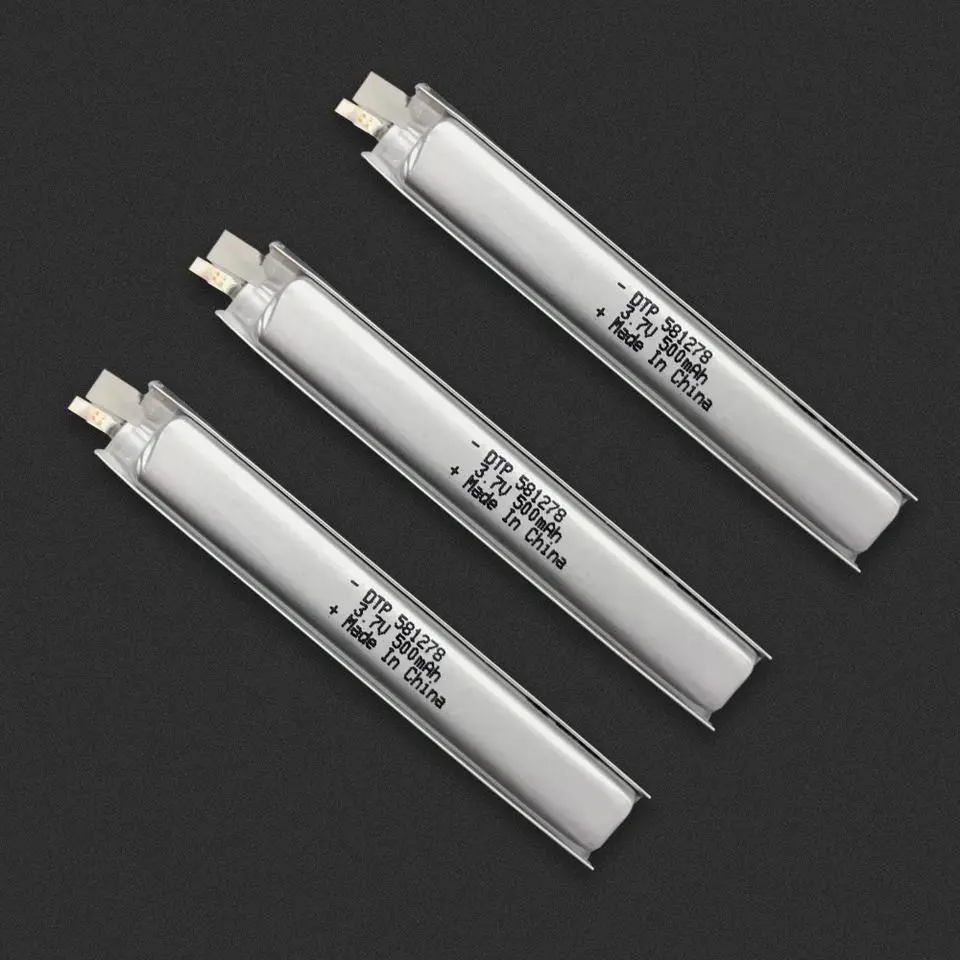

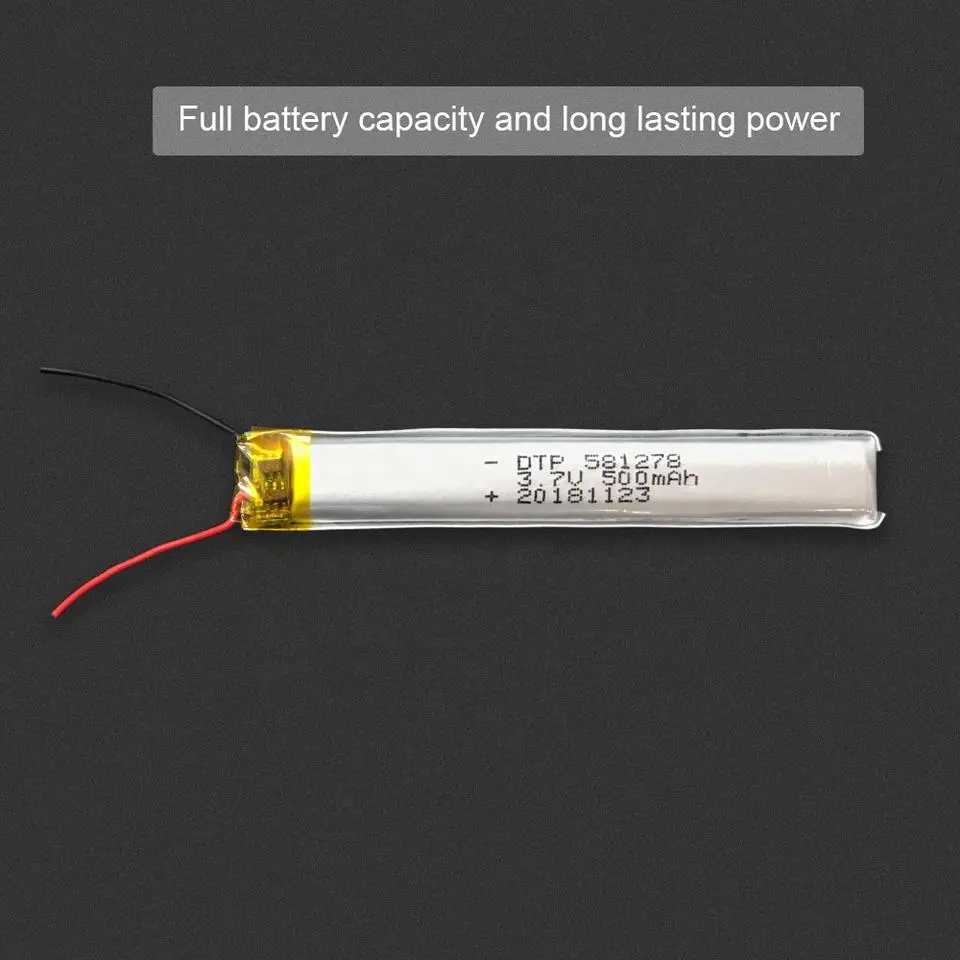

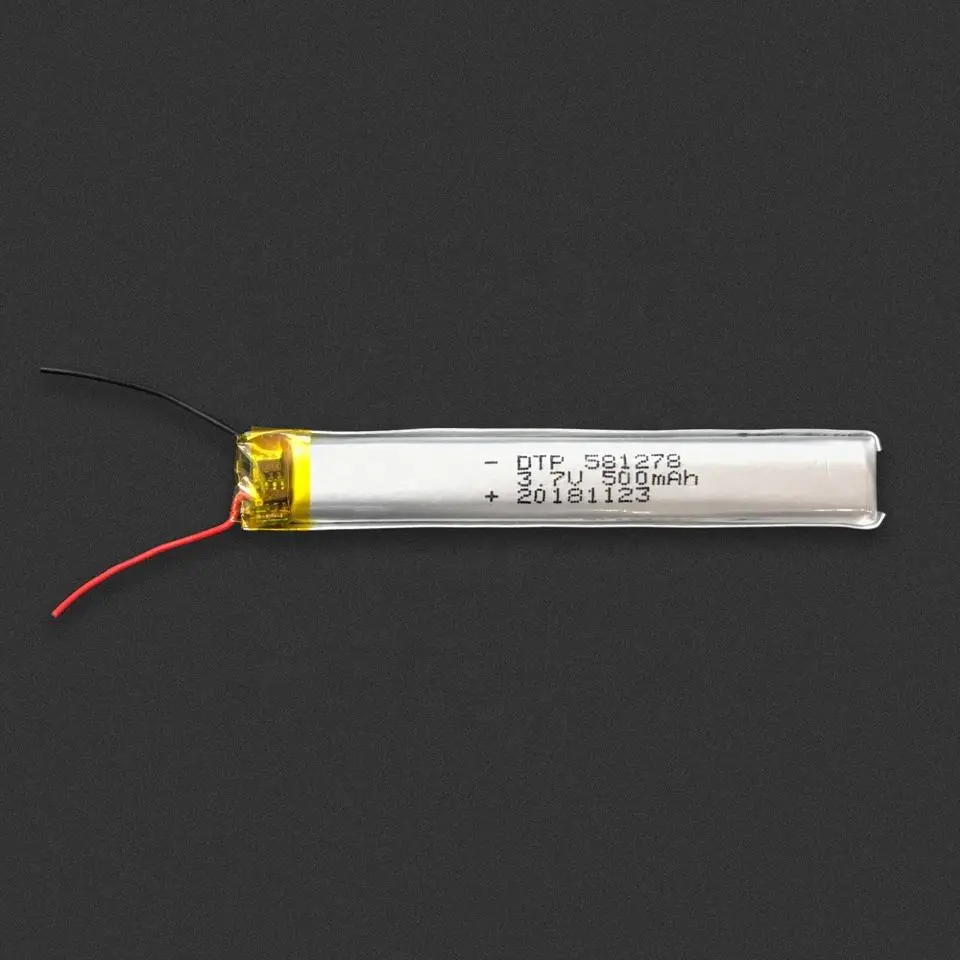

3.7V LiPo Capacitor Battery Lithium 581278 500mah
Brand: Green Battery|Model: DTP 581278
Product Highlights
3.7V 500mAh rechargeable battery for capacitor backup power supply / dashboard /instrument panel
Key attributes
ModelDTP 581278
Capacity500mAh
Size5.8*12*78mm
Nominal Voltage3.7V
Battery TypeLithium Polymer Battery
ApplicationCapacitor Backup Power Supply / Dashboard / Instrument Panel, Consumer Electronics, Home Appliances, GPS Tracker
Cycle Life300 cycles
Charging Voltage4.2V
Discharge Cut-off3.0V
Max Charging Current1.0C / 4.2V
Max Discharging CurrentContinuous 1.0C / 3.0V; Non-continuous 2.0C / 3.0V
Battery Pack Impedance≤180mΩ
Operating TemperatureCharging: 10°C to 45°C; Discharging: -20°C to 60°C
Place of OriginGuangdong, China
Reference StandardGB/T 18287-2013, KC CE ROHS IEC/EN61960, UL1642
Customization options
›Customized logo(Min. order: 1000 pieces)
Customized packaging(Min. order: 1000 pieces)
Customized connector and wire(Min. order: 1000 pieces)
Supplier’s capabilities
Response Time≤24h
On-time delivery100%
Shipping: Fee and delivery date to be negotiated. Chat with Green Battery now for details.
Request QuoteProduct Description
3.7V LiPo Capacitor Battery Lithium
DTP 581278 is a rechargeable battery option selected for capacitor backup power supply / dashboard /instrument panel.
Key Specifications
- Nominal voltage: 3.7V
- Capacity: 500mAh
- OEM/ODM customization is available for connector, wire length, PCB/PCM, label, and packaging requirements.
Product Features
Product Features
High Energy Density: DTP specializes in lithium polymer batteries (Li-Po). These batteries are lightweight and highly shape-flexible.
Customization Service: Besides the above standard models, the manufacturer supports size customization. If you have specific space limitations (length/width/thickness), you can adjust the size code to find the best-fit model.

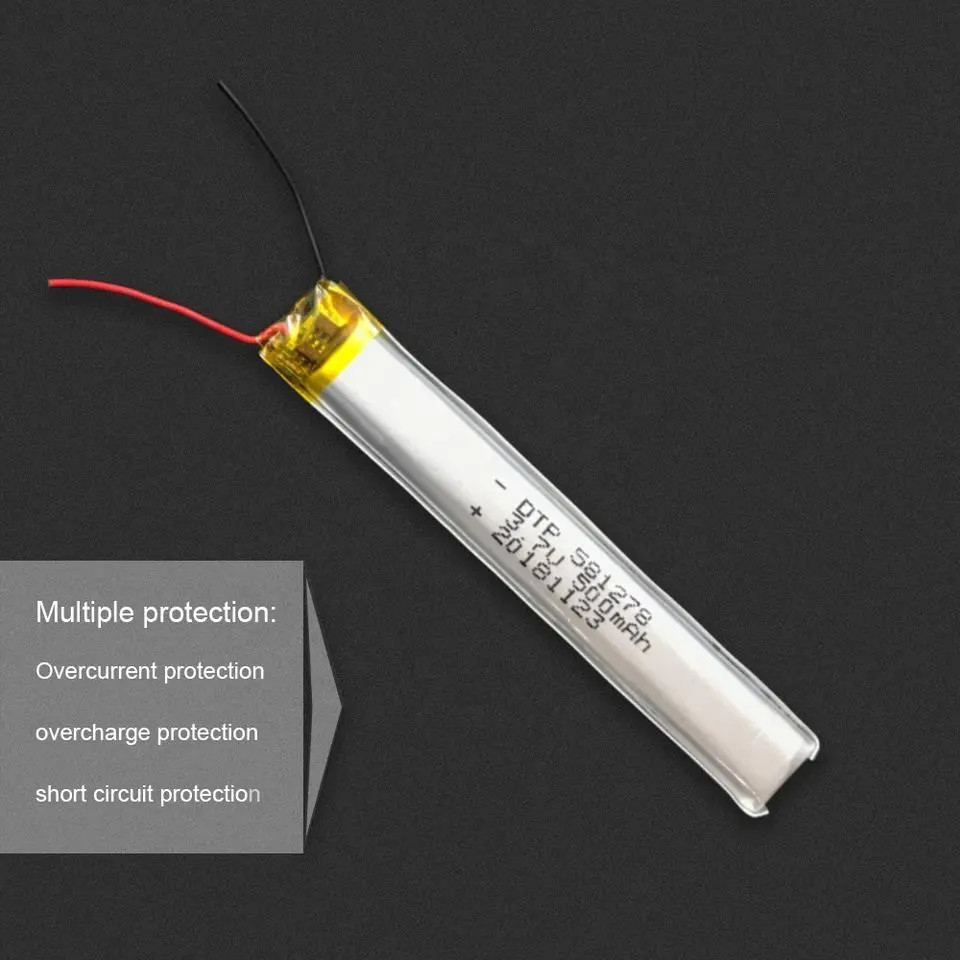

Safety: Its batteries are normally equipped with a protection circuit module (PCM), featuring overcharge, overdischarge and short-circuit protection.
Specifications
| Item | Parameter |
| Nominal Voltage | 3.7V |
| Minimum Capacity | 500mAh (0.2C discharge) |
| Charging Voltage | 4.2V |
| Discharging Cut-off Voltage | 3.0V |
| Standard Charging | 0.2C / 4.2V |
| Max Charging | 1.0C / 4.2V |
| Standard Discharging | 0.2C / 3.0V |
| Max Discharging | Continuous discharge: 1.0C / 3.0V; Non-continuous discharge: 2.0C / 3.0V |
| Shipment Voltage | ≥3.85V |
| Battery Pack Impedance | ≤180mΩ |
| Operating Temperature | Charging: 10°C ~ 45°C; Discharging: -20°C ~ 60°C |
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time) | -10℃~25℃ (12 months ≥85%); -10℃~45℃ (6 months ≥85%); -10℃~55℃ (1 month ≥90%); 20±5℃ is the recommended storage temperature |
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
| Reference Standard | GB/T 18287-2013, KC CE ROHS IEC/EN61960, UL1642 |
