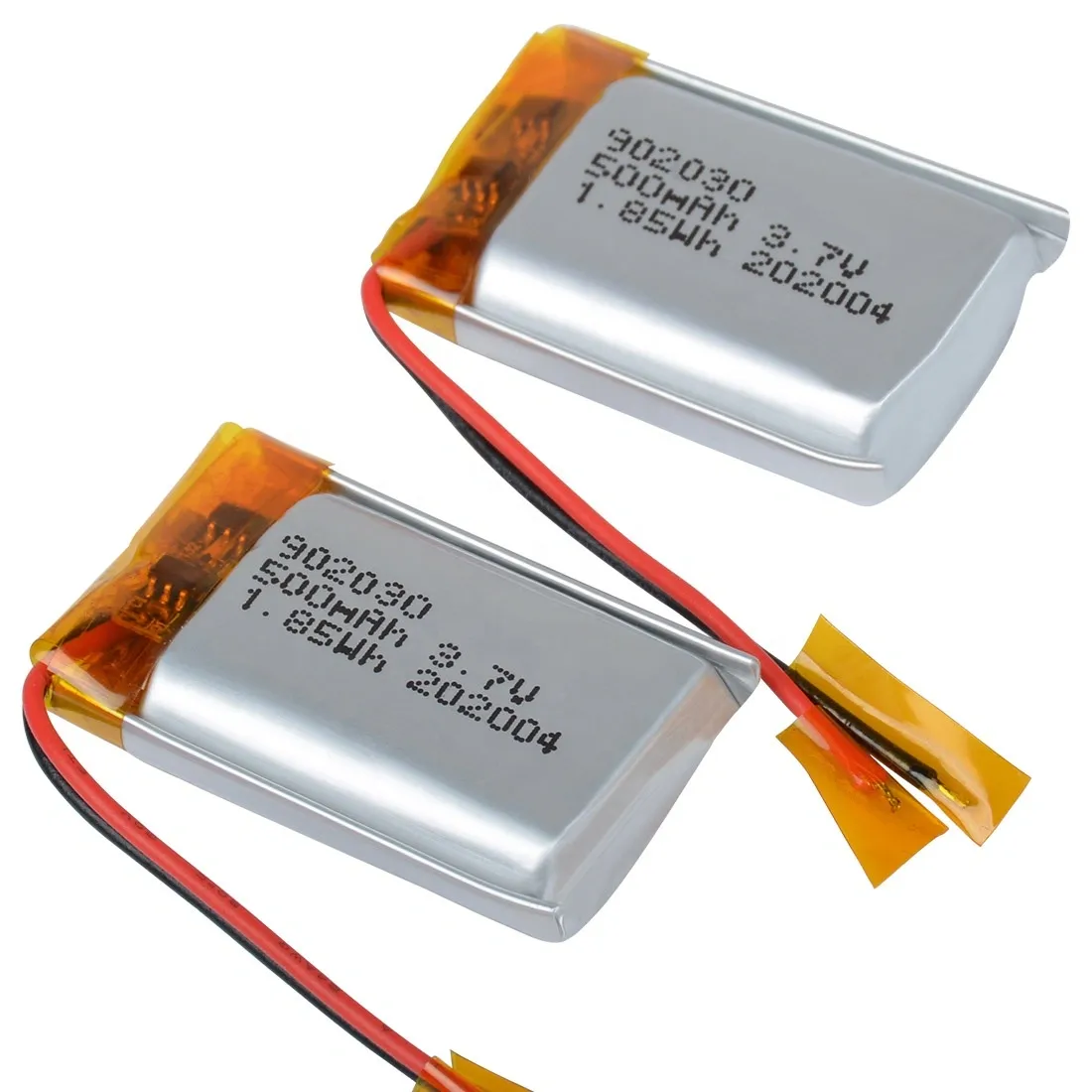

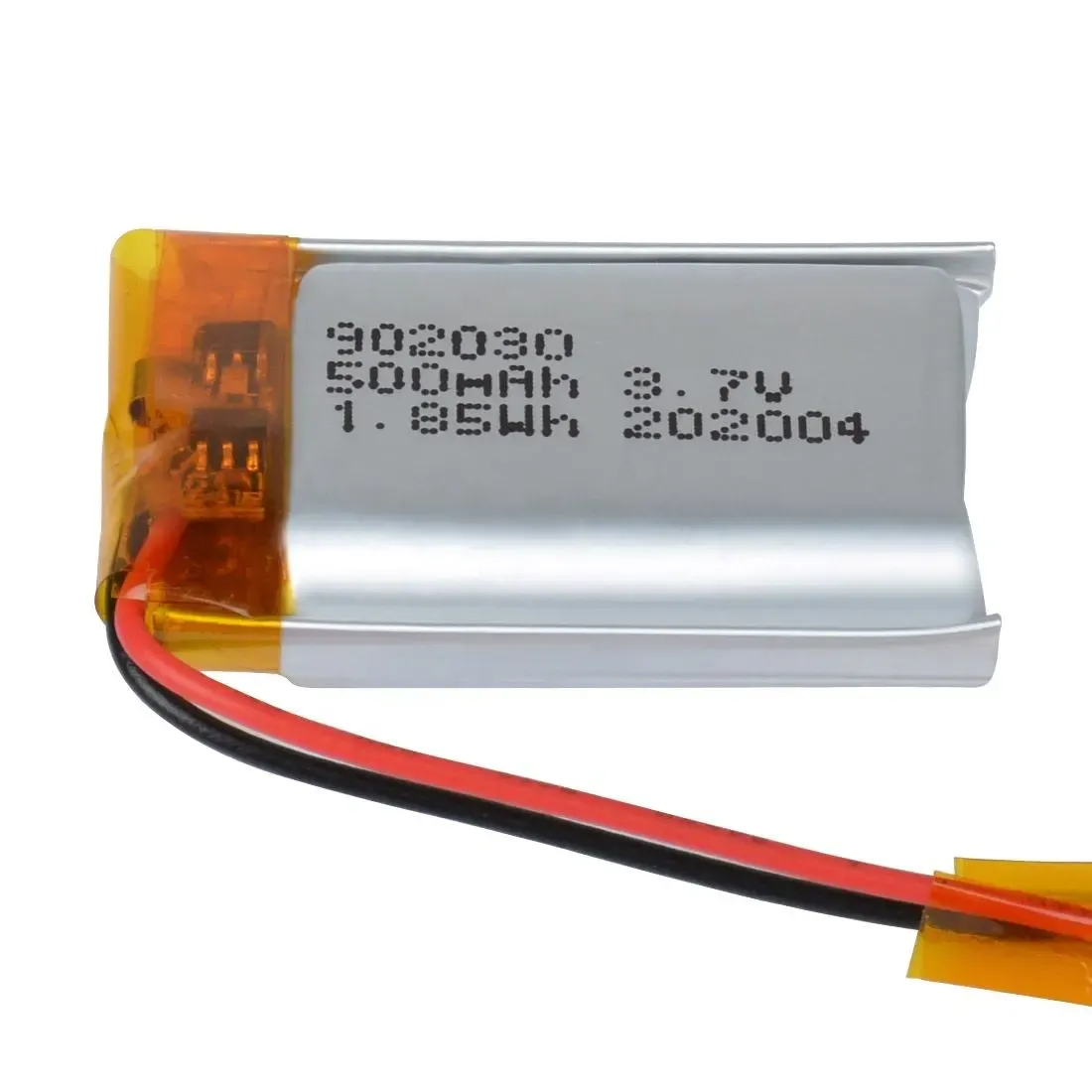

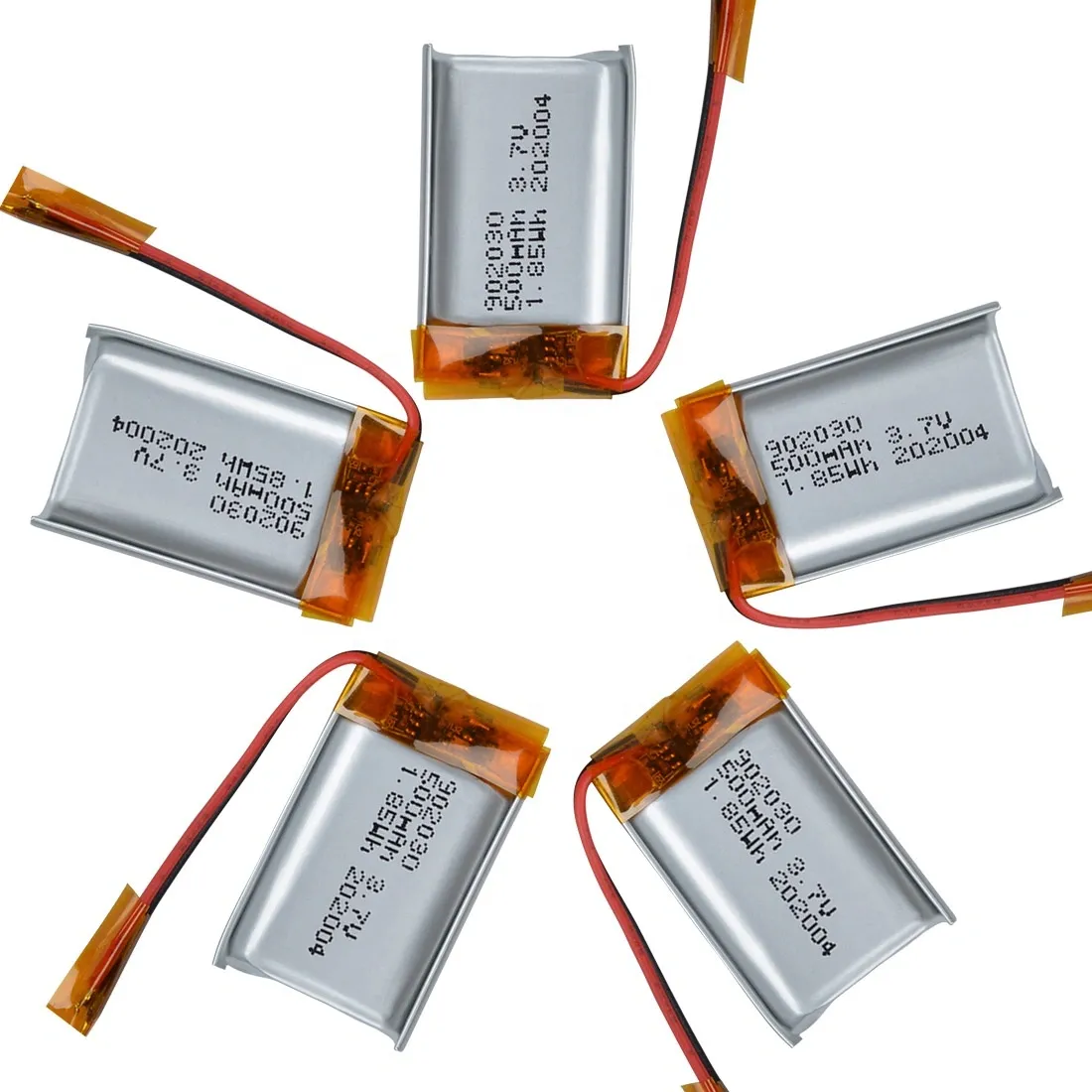

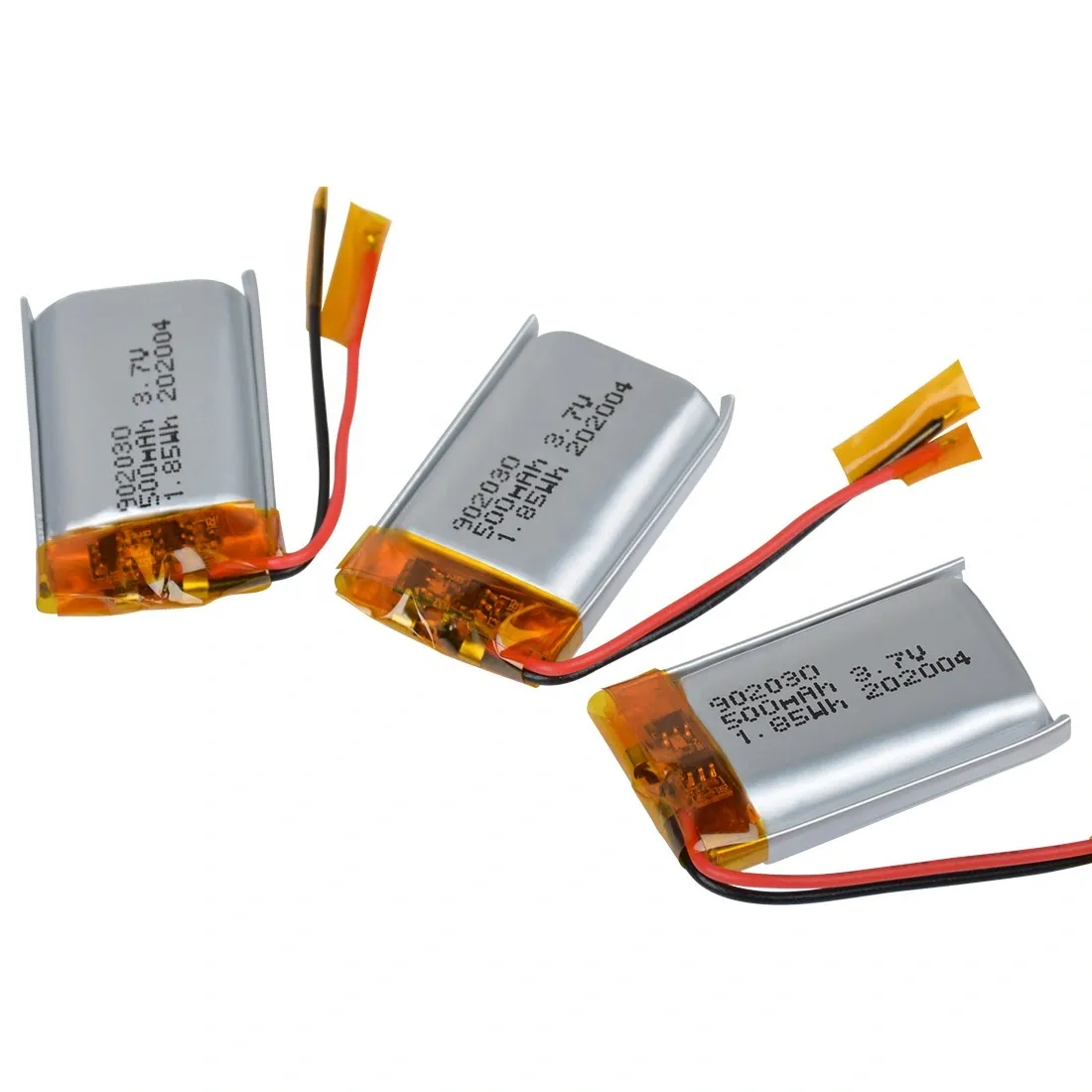

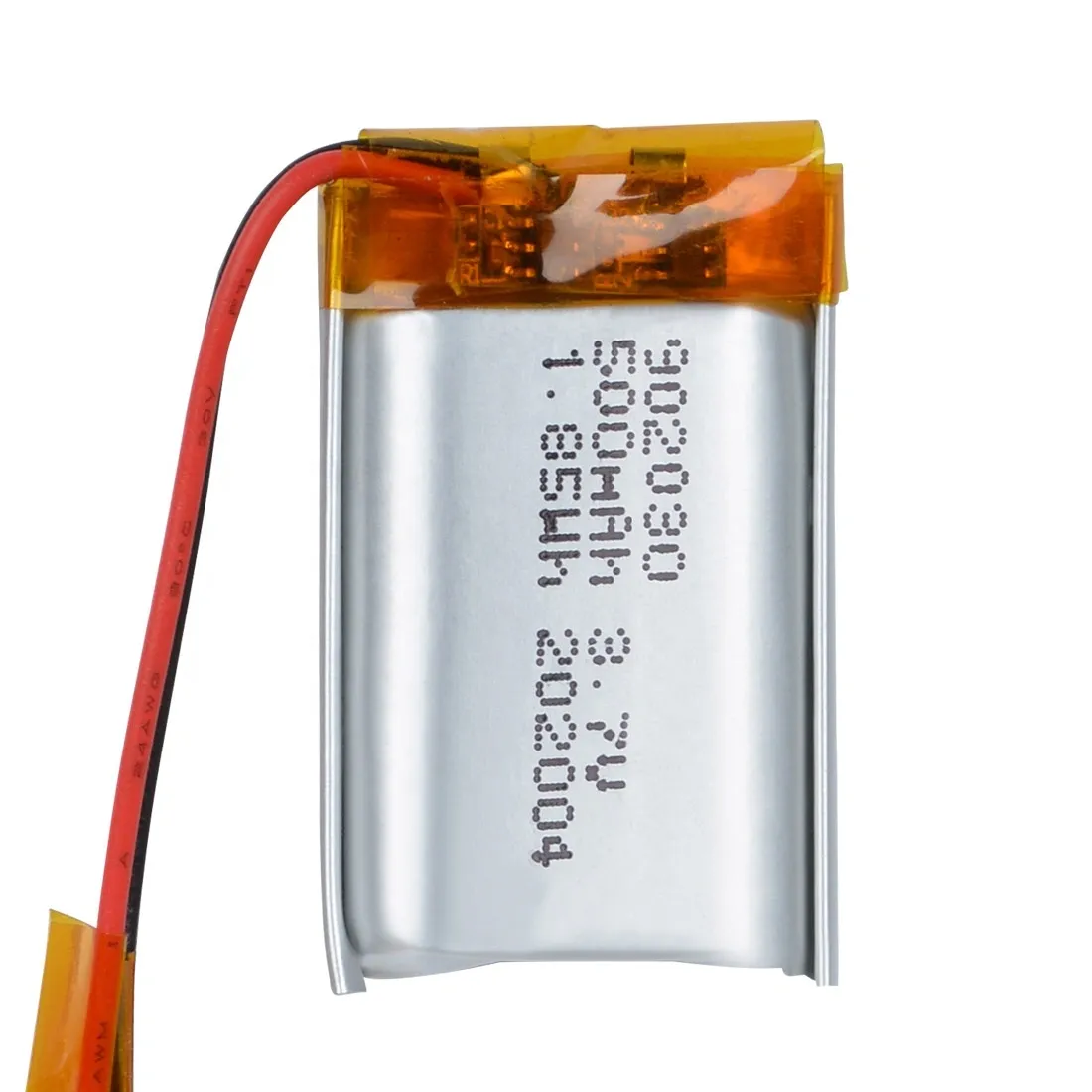

KC Approved Custom high temperature 902030HT 3.7V 480mAh 500mAh Lipo Battery With PCB JST Molex
Product Highlights
Key Features (Designed for High-Temperature Environments) Extreme Heat Adaptability: Wide discharging temperature range from -20°C to 80°C. Thermal Stability: Formulated with electrolytes resistant to thermal breakdown; engineered with an optimized heat dissipation structure to prevent thermal degradation and structural expansion under high temperatures. Structural Integrity: Designed to protect internal components from heat-induced stress, ensuring consistent performance and reliability during prolonged usage.
Key attributes
Customization options
›Product Description
Product Overview
High capacity, low inner resistance, long cycle life, and low self-discharge rechargeable Li-polymer battery.
- Rapid charge-discharge cycle life up to 500+ times.
- Provides both single cells and battery packs.

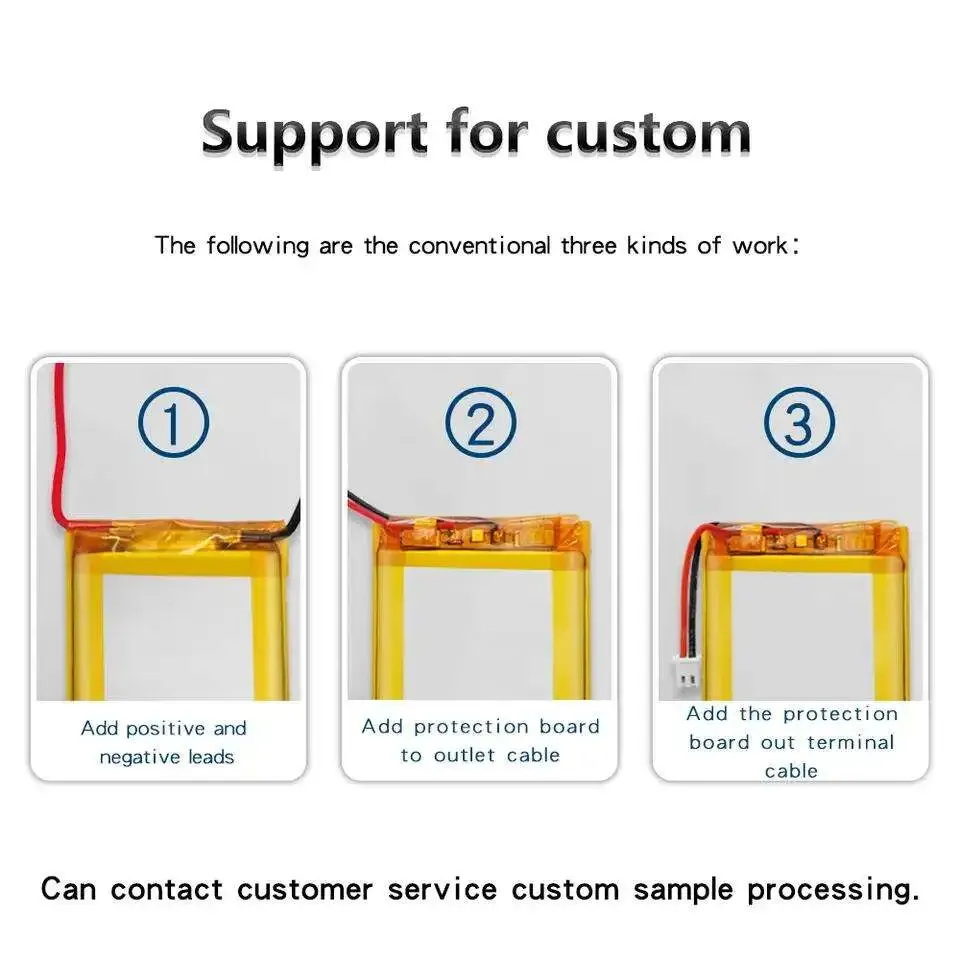

- Supports customized sizes, packs, tags, labels, and connectors.
- Suitable for Industrial Monitoring Equipment, Outdoor or In-Vehicle Terminals, Specialized Industrial Control Equipment.
Key Features
(Designed for High-Temperature Environments) Extreme Heat Adaptability: Wide discharging temperature range from -20°C to 80°C.
Thermal Stability
Formulated with electrolytes resistant to thermal breakdown; engineered with an optimized heat dissipation structure to prevent thermal degradation and structural expansion under high temperatures. Structural Integrity: Designed to protect internal components from heat-induced stress, ensuring consistent performance and reliability during prolonged usage. Potential ApplicationsUsed in demanding environments requiring extreme thermal tolerance
Industrial Monitoring Equipment: Sensors or data acquisition units deployed in high-temperature operating environments.
Outdoor or In-Vehicle Terminals: Devices operating under direct sunlight or within enclosed, high-heat spaces.
Specialized Industrial Control Equipment: Manufacturing systems or embedded systems operating in high-temperature production facilities.
Specifications
| Parameter | Value |
|---|---|
| Model Number | DTP902030HT |
| Weight | 10g |
| Size | 9.2*20.5*32mm |
| Voltage | 3.7Volt |
| Capacity | 500mAh |
| Certificate | KC/CE/RoHS/UN38.3/MSDS |
| Cycle life | 500 Times |
| Protection | PCB Circuit |
| Anode Material | NCM |
| Charging ratio | 0.5C |
| Discharge rate | 1C |
