Lipo Battery 3.7V 600mah 503040 Li-polymer Battery for Wearable sensors, smart clothing
Brand: Green Battery|Model: DTP503040
Product Highlights
3.7V 600mAh rechargeable battery for Wearable sensors, smart clothing
Key attributes
ModelDTP503040
Capacity600mAh

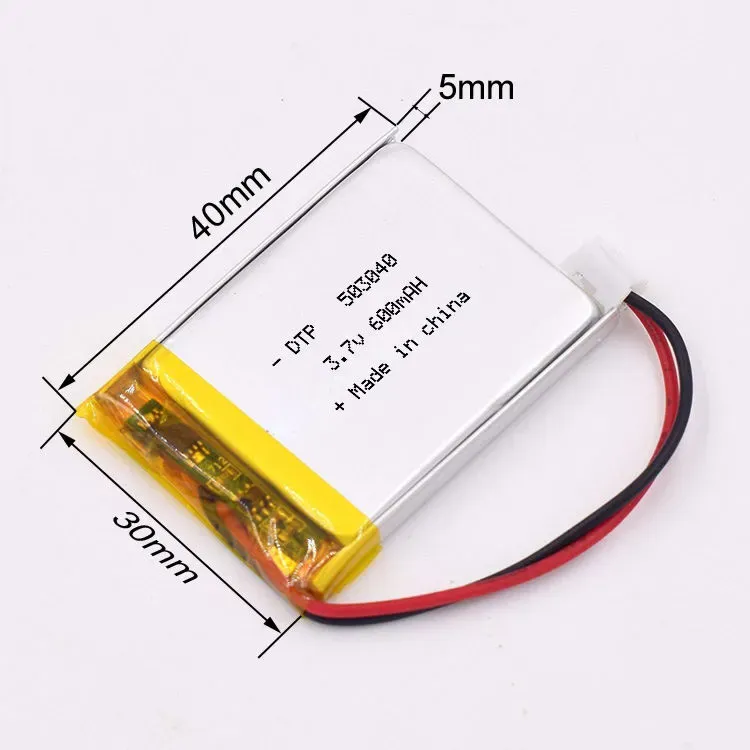

Size5*30*40mm
Nominal Voltage3.7V
Battery TypeLithium Polymer Battery
ApplicationWearable sensors, smart clothing
Customization options
›Customized logo(Min. order: 1000 pieces)
Customized packaging(Min. order: 1000 pieces)
Customized connector and wire(Min. order: 1000 pieces)
Supplier’s capabilities
Response Time≤24h
On-time delivery100%
Shipping: Fee and delivery date to be negotiated. Chat with Green Battery now for details.
Request QuoteProduct Description
Rechargeable Lithium Custom 30 40mm Series
DTP 503040 is a rechargeable lithium polymer battery option selected for Wearable sensors, smart clothing.
Key Specifications
- Nominal voltage: 3.7V
- Capacity: 600mAh
- OEM/ODM customization is available for connector, wire length, PCB/PCM, label, and packaging requirements.
Product Features
High energy density, lightweight construction, and flexible battery configuration for compact B2B device applications.
Customization can be provided for size, protection circuit, connector, wire, label, and packaging after engineering confirmation.
Protection options commonly include over-charge, over-discharge, and short-circuit protection.
| Application | Consumer Electronics |
| Battery Type | Solid state |
| Cycle Life | 500 cycles |
| Cathode Materials | LiCoO2 |
| Max Load Quantity(cells) | 10 |
| Operating Temperature(℃) | -20-60 |
| Model Number | DTP105050 |
| Place of Origin | Guangdong, China |
| Brand Name | DTP |
| Weight | Less than 5g |
| Type | Li-polymer |
| Protect circuit | Yes |
| Connector | As your request |
| IC | Seiko or Futune |
| Cycle life | more than 500 times |
| Discharge cut-off voltage | 3.0V |
| Charge cut-off voltage | 4.2V |
| Max discharge current | 1C |
| Max charge current | 1C |
| Product name | lipo battery 3.7V 600mah Li-polymer battery |
| Packaging and delivery | |
|---|---|
| Selling Units | Single item |
| Single package size | 36X22X12 cm |
| Single gross weight | 0.03 kg |
