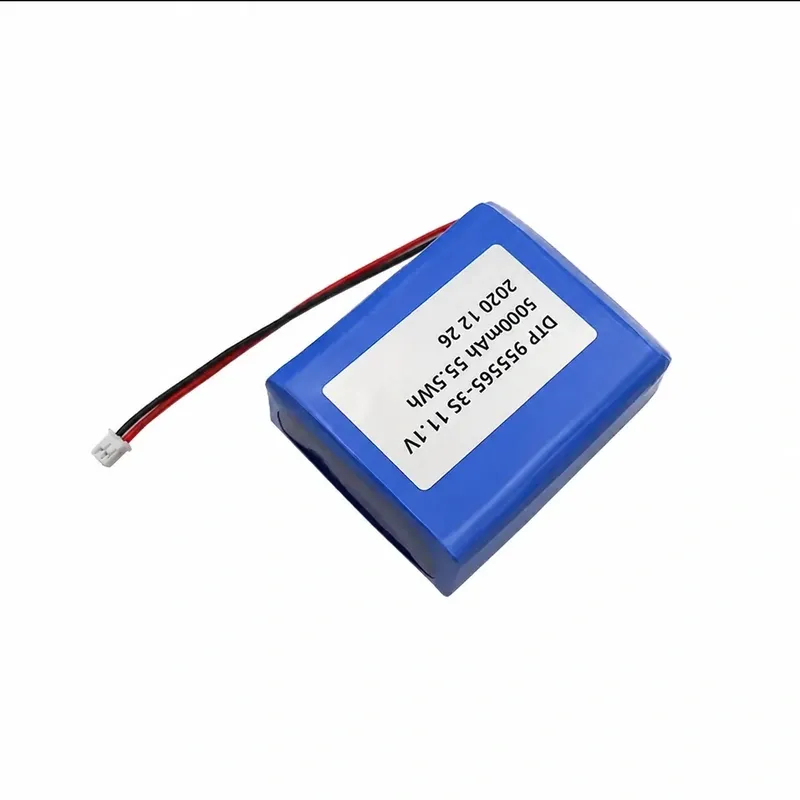

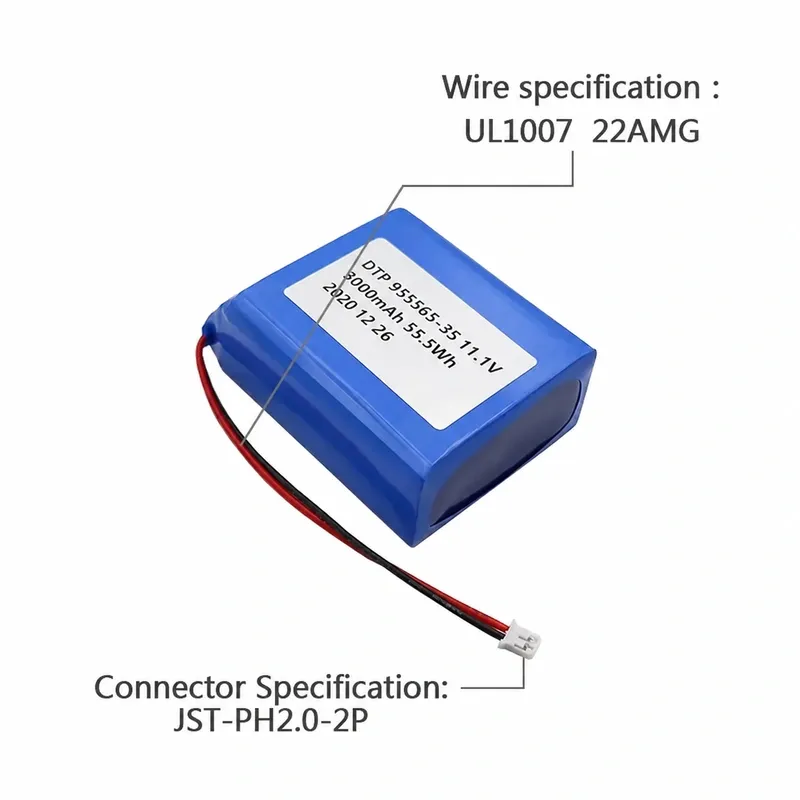

11.1 V 5000mAh Li-Ion Battery Pack 955565-3S

Brand: Green Battery|Model: 955565-3S

Model Number955565-3S

SKUUFX0071-09

Capacity5000mAh

Nominal Voltage11.1V

Energy55.5Wh

Configuration3S1P

Weightapproximately 274g

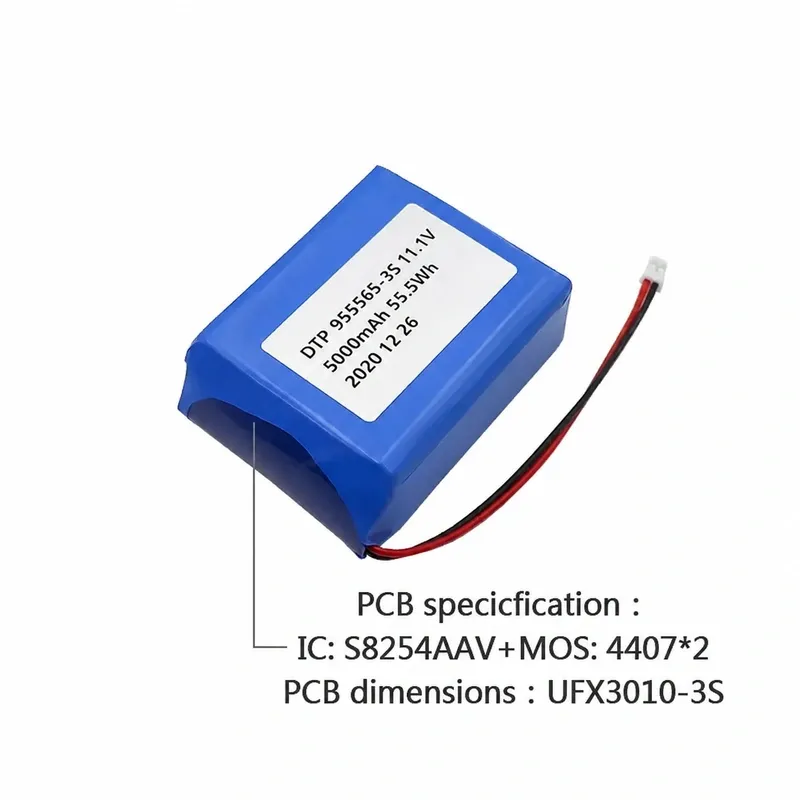

PCMYes

NTCNo

Max. Charge Current2500mA

Max. Discharge Current2500mA

Charging Temperature0℃ to 45℃

Discharging Temperature-20℃ to 60℃

Internal Resistanceless than 180mΩ

Cycle Life100 cycles ≥92%; 300 cycles ≥88%; 500 cycles ≥80%

Short ProtectionYes

On-time delivery100%

Shipping: Fee and delivery date to be negotiated. Chat with Green Battery now for details.

Highlights at a glance

5000mAh Li-ion battery pack with 55.5Wh energy.
11.1V nominal voltage and 3S1P configuration.
PCM and short-circuit protection.
Discharging temperature: -20℃ to 60℃.

Wide Temperature RangeUltra-Low Self-DischargeLong Cycle LifeDischarge Rate

Wide Temperature Range

Reliable battery performance across a wide operating temperature range, suitable for demanding applications.

Ultra-Low Self-Discharge

Low self-discharge helps the battery retain its stored energy for longer periods when not in use.

Long Cycle Life

Stable charge and discharge performance supports dependable service over repeated cycles.

Discharge Rate

Consistent discharge performance delivers reliable power output for the battery pack.

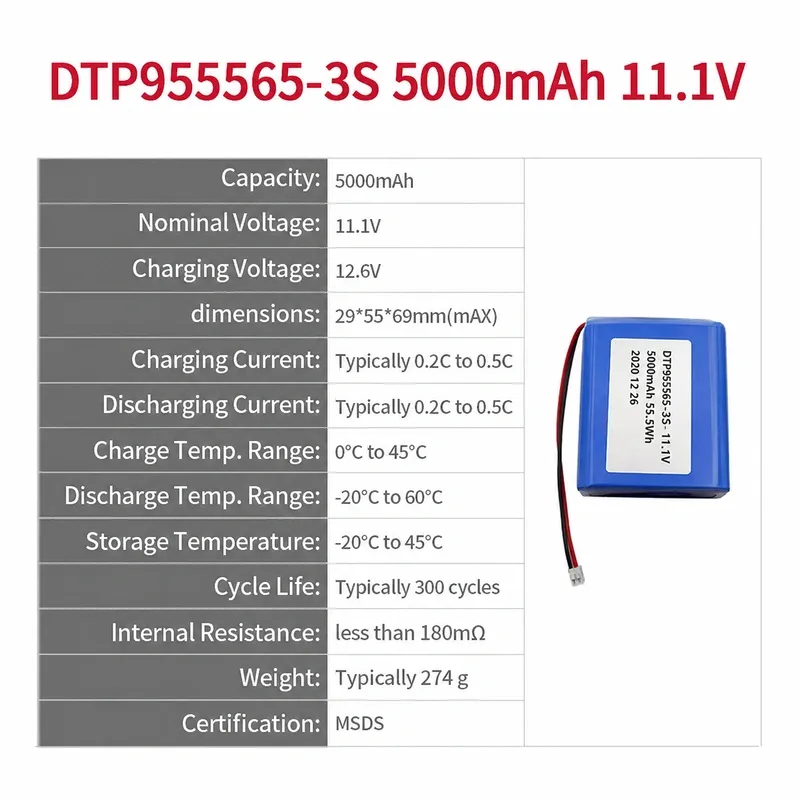

Specifications

Parameter	Value
Model Number	955565-3S
SKU	UFX0071-09
Capacity	5000mAh
Nominal Voltage	11.1V
Energy	55.5Wh
Configuration	3S1P
Weight	approximately 274g
PCM	Yes
NTC	No
Max. Charge Current	2500mA
Max. Discharge Current	2500mA
Charging Temperature	0℃ to 45℃
Discharging Temperature	-20℃ to 60℃
Internal Resistance	less than 180mΩ
Cycle Life	100 cycles ≥92%; 300 cycles ≥88%; 500 cycles ≥80%
Short Protection	Yes
