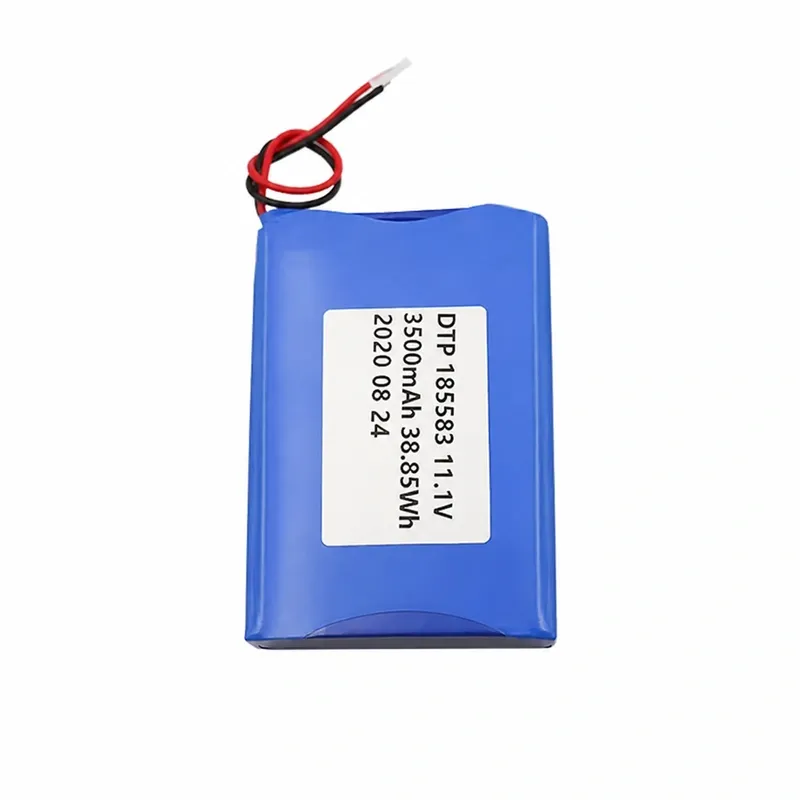

11.1 V 3500mAh Lithium Ion Battery Pack 185583-3S
Brand: Green Battery|Model: 185583-3S
Product Highlights
3500mAh, 11.1V and 38.85Wh battery pack with 3S1P configuration, approximately 65g weight and PCM protection.
Key attributes
Model Number185583-3S
SKUUFX0037-10
Capacity3500mAh
Nominal Voltage11.1V
Energy38.85Wh
Configuration3S1P
Weightapproximately 65g
PCMYes
Max. Charge Current3500mA
Charging Temperature0℃ to 45℃
Discharging Temperature-20℃ to 60℃
Internal Resistanceless than 180mΩ
Cycle Life100 cycles ≥92%; 300 cycles ≥88%; 500 cycles ≥80%
Short ProtectionYes
Customization options
›Response Time: ≤24hOn-time delivery: 100%Fee and delivery date to be negotiated. Chat with Green Battery now for details.
Product Description
Highlights at a glance
- 3500mAh capacity and 38.85Wh energy.
- 11.1V nominal voltage with 3S1P configuration.
- PCM and short-circuit protection.
- Discharging temperature: -20℃ to 60℃.
Wide Temperature Range
Reliable battery performance across a wide operating temperature range, suitable for demanding applications.
Ultra-Low Self-Discharge
Low self-discharge helps the battery retain its stored energy for longer periods when not in use.
Long Cycle Life
Stable charge and discharge performance supports dependable service over repeated cycles.
Discharge Rate
Consistent discharge performance delivers reliable power output for the battery pack.

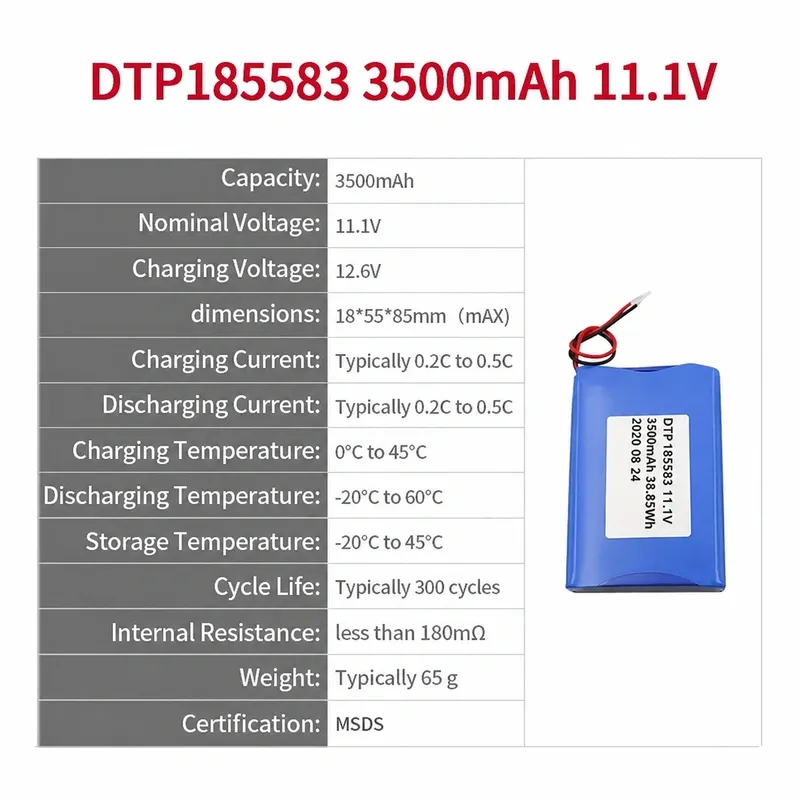

Specifications
| Parameter | Value |
|---|---|
| Model Number | 185583-3S |
| SKU | UFX0037-10 |
| Capacity | 3500mAh |
| Nominal Voltage | 11.1V |
| Energy | 38.85Wh |
| Configuration | 3S1P |
| Weight | approximately 65g |
| PCM | Yes |
| NTC | No |
| Max. Charge Current | 3500mA |
| Max. Discharge Current | 3500mA |
| Charging Temperature | 0℃ to 45℃ |
| Discharging Temperature | -20℃ to 60℃ |
| Internal Resistance | less than 180mΩ |
| Cycle Life | 100 cycles ≥92%; 300 cycles ≥88%; 500 cycles ≥80% |
| Short Protection | Yes |
