11.1 V 3000mAh Lithium Ion Battery Pack 105050-3S
Brand: Green Battery|Model: 105050-3S
Product Highlights
3000mAh, 11.1V and 33.3Wh battery pack with 3S1P configuration, approximately 160g weight and less than 120mΩ internal resistance.
Key attributes
Model Number105050-3S
SKUUFX0349-07
Capacity3000mAh
Nominal Voltage11.1V
Energy33.3Wh
Configuration3S1P
Weightapproximately 160g
PCMYes
Charging Temperature0℃ to 45℃
Discharging Temperature-20℃ to 60℃
Internal Resistanceless than 120mΩ
Cycle Life100 cycles ≥92%; 300 cycles ≥88%; 500 cycles ≥80%
Short ProtectionYes
Customization options
›Response Time: ≤24hOn-time delivery: 100%Fee and delivery date to be negotiated. Chat with Green Battery now for details.
Product Description
Highlights at a glance
- 3000mAh capacity and 33.3Wh energy.
- 11.1V nominal voltage and 3S1P configuration.
- PCM and short-circuit protection.
- Discharging temperature: -20℃ to 60℃.
Wide Temperature Range
Reliable battery performance across a wide operating temperature range, suitable for demanding applications.
Ultra-Low Self-Discharge
Low self-discharge helps the battery retain its stored energy for longer periods when not in use.
Long Cycle Life
Stable charge and discharge performance supports dependable service over repeated cycles.
Discharge Rate
Consistent discharge performance delivers reliable power output for the battery pack.

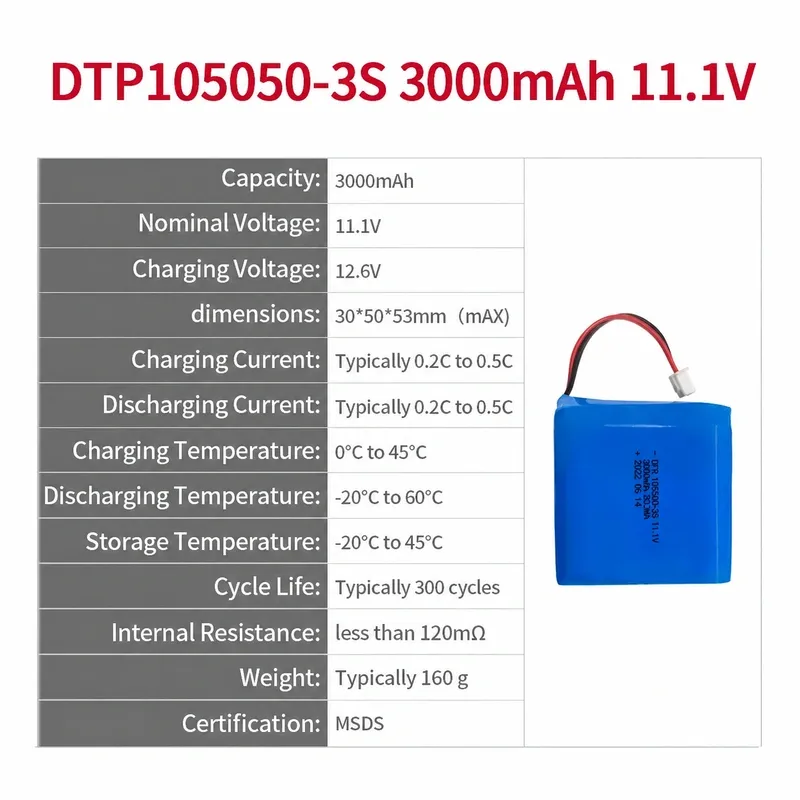

Specifications
| Parameter | Value |
|---|---|
| Model Number | 105050-3S |
| SKU | UFX0349-07 |
| Capacity | 3000mAh |
| Nominal Voltage | 11.1V |
| Energy | 33.3Wh |
| Configuration | 3S1P |
| Weight | approximately 160g |
| PCM | Yes |
| NTC | No |
| Max. Charge Current | 1500mA |
| Max. Discharge Current | 1500mA |
| Charging Temperature | 0℃ to 45℃ |
| Discharging Temperature | -20℃ to 60℃ |
| Internal Resistance | less than 120mΩ |
| Cycle Life | 100 cycles ≥92%; 300 cycles ≥88%; 500 cycles ≥80% |
| Short Protection | Yes |
