11.1 V 2300mAh Lithium Ion Battery Pack 505573-3S
Brand: Green Battery|Model: 505573-3S
Product Highlights
2300mAh, 11.1V and 25.53Wh battery pack with 3S1P configuration, approximately 125g weight and less than 200mΩ internal resistance.
Key attributes
Model Number505573-3S
SKUUFX0476-12
Capacity2300mAh
Nominal Voltage11.1V
Energy25.53Wh
Configuration3S1P
Weightapproximately 125g
PCMYes
NTCNo
Max. Charge Current2300mA
Max. Discharge Current2300mA
Charging Temperature0℃ to 45℃
Discharging Temperature-20℃ to 60℃
Internal Resistanceless than 200mΩ
Cycle Life100 cycles ≥92%; 300 cycles ≥88%; 500 cycles ≥80%
Short ProtectionYes
Customization options
›Response Time: ≤24hOn-time delivery: 100%Fee and delivery date to be negotiated. Chat with Green Battery now for details.
Product Description
Highlights at a glance
- 2300mAh capacity and 25.53Wh energy.
- 11.1V nominal voltage with 3S1P configuration.
- PCM and short-circuit protection.
- Discharging temperature: -20℃ to 60℃.
Wide Temperature Range
Reliable battery performance across a wide operating temperature range, suitable for demanding applications.
Ultra-Low Self-Discharge
Low self-discharge helps the battery retain its stored energy for longer periods when not in use.
Long Cycle Life
Stable charge and discharge performance supports dependable service over repeated cycles.
Discharge Rate
Consistent discharge performance delivers reliable power output for the battery pack.

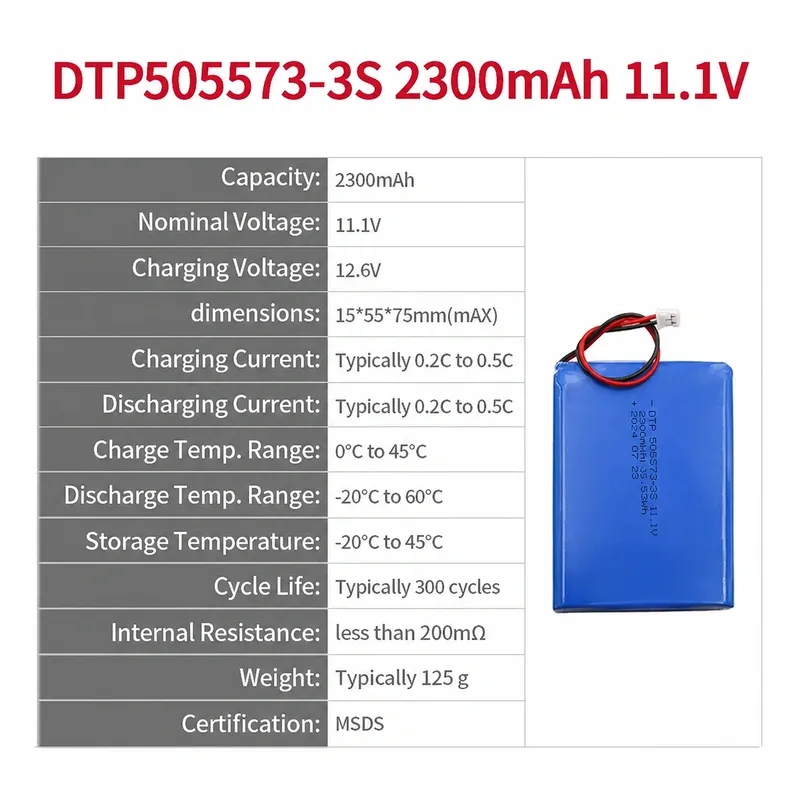

Specifications
| Parameter | Value |
|---|---|
| Model Number | 505573-3S |
| SKU | UFX0476-12 |
| Capacity | 2300mAh |
| Nominal Voltage | 11.1V |
| Energy | 25.53Wh |
| Configuration | 3S1P |
| Weight | approximately 125g |
| PCM | Yes |
| NTC | No |
| Max. Charge Current | 2300mA |
| Max. Discharge Current | 2300mA |
| Charging Temperature | 0℃ to 45℃ |
| Discharging Temperature | -20℃ to 60℃ |
| Internal Resistance | less than 200mΩ |
| Cycle Life | 100 cycles ≥92%; 300 cycles ≥88%; 500 cycles ≥80% |
| Short Protection | Yes |
