DTP104050-3S 11.1V 2300mAh Lithium Ion Battery Pack
Product Highlights
2300mAh, 11.1V and 25.53Wh battery pack with 3S1P configuration, approximately 128g weight and less than 180mΩ internal resistance.
Key attributes
Customization options
›Product Description
Highlights at a glance
- DTP104050-3S
- 11.1V nominal voltage with 3S1P configuration.
- PCM and short-circuit protection.
- Discharging temperature: -20℃ to 60℃.
Wide Temperature Range
Reliable battery performance across a wide operating temperature range, suitable for demanding applications.
Ultra-Low Self-Discharge
Low self-discharge helps the battery retain its stored energy for longer periods when not in use.
Long Cycle Life
Stable charge and discharge performance supports dependable service over repeated cycles.
Discharge Rate
Consistent discharge performance delivers reliable power output for the battery pack.
Battery Power Check
Before shipment, each lithium battery undergoes comprehensive testing to verify its voltage, current, and charging and discharging parameters, ensuring compliance with standard operational levels for reliable functionality.
Battery Power Check
Before shipment, each lithium battery undergoes comprehensive testing to verify its voltage, current, and charging and discharging parameters, ensuring compliance with standard operational levels for reliable functionality.

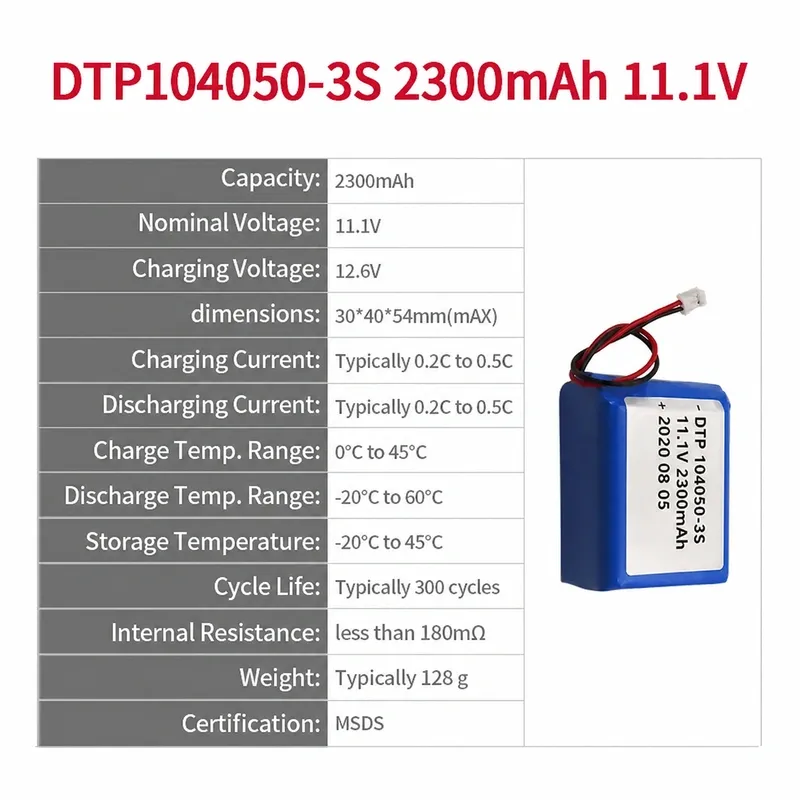

Specifications
| Parameter | Value |
|---|---|
| Model Number | DTP104050-3S |
| SKU | 104050-3S |
| Capacity | 2300mAh |
| Nominal Voltage | 11.1V |
| Energy | 25.53Wh |
| Configuration | 3S1P |
| Weight | approximately 128g |
| PCM | Yes |
| NTC | No |
| Max. Charge Current | 1150mA |
| Max. Discharge Current | 1150mA |
| Charging Temperature | 0℃ to 45℃ |
| Discharging Temperature | -20℃ to 60℃ |
| Internal Resistance | less than 180mΩ |
| Cycle Life | 100 cycles ≥92%; 300 cycles ≥88%; 500 cycles ≥80% |
| Short Protection | Yes |
