Improving Lithium-Ion Battery Performance in the Cold: Materials, Plating and Validation
Cold discharge loss and charging-related lithium plating require different answers. Examine electrolyte, interfaces and electrodes, then verify changes with a documented −20°C study and cell-level tests.
October 19, 2026Green BatteryAbout 11 min read
At −20°C a cell may hit its discharge voltage cutoff early; charging at the same temperature poses a different risk of metallic lithium deposition on graphite. Material changes may improve a defined cell design, but they cannot replace model-specific charge limits, protection and assembled-device testing. This article evaluates cathode, electrolyte and anode trade-offs using published research. Third-party measurements are identified as such.
Where the cold slows the cell
Lithium ions move through liquid electrolyte, shed part of their solvation shell, cross interphase layers, transfer charge and diffuse inside electrode particles. Cooling can increase viscosity and hinder each of these steps. The controlling step depends on chemistry, SOC, temperature, rate and cell geometry. Qin and colleagues’ review treats liquid, interfacial and solid-state limitations together. A single EIS semicircle or one DCIR value cannot uniquely identify the cause.

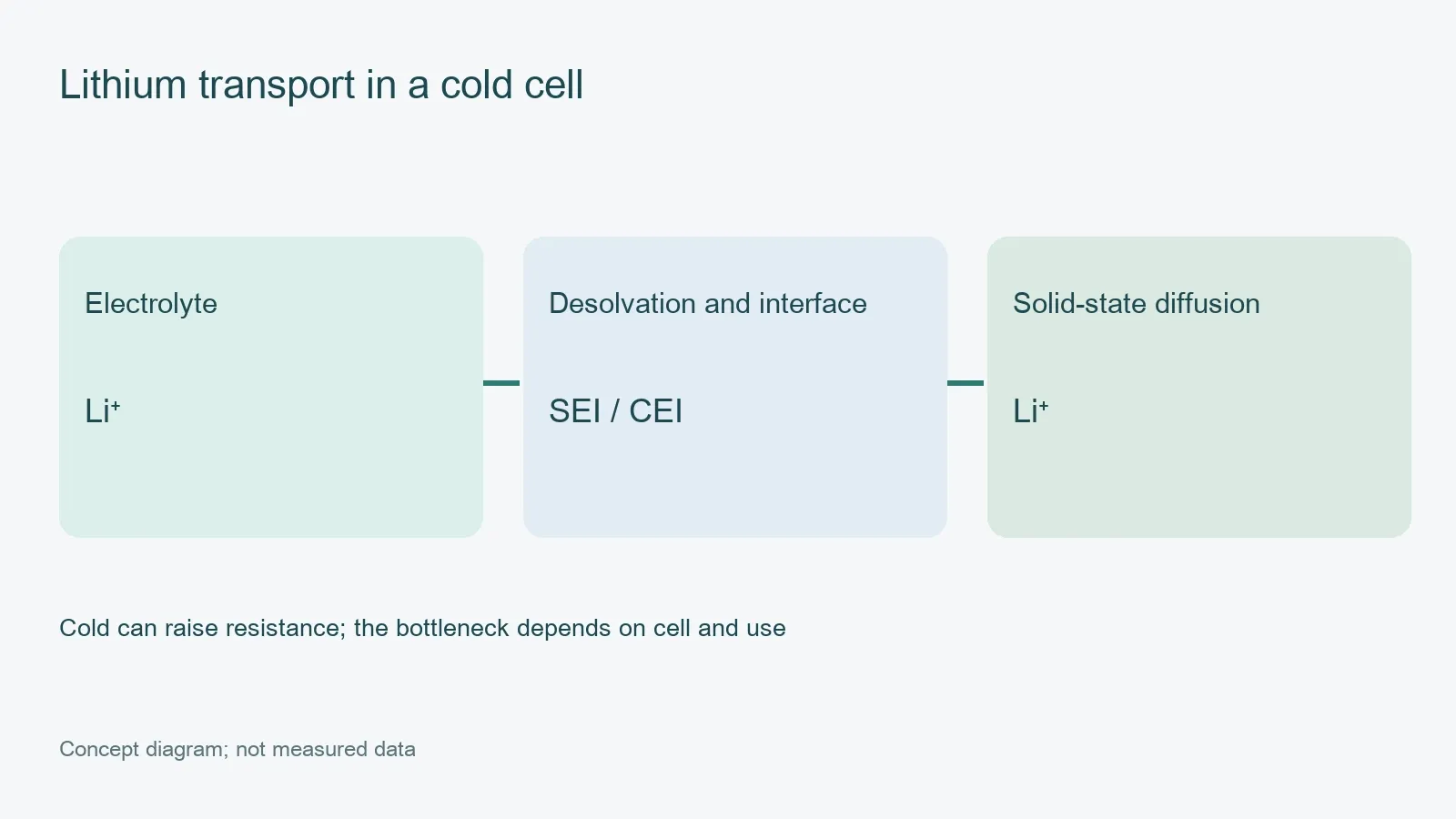

The diagram is an explanatory path, not a measured curve. Temperature-dependent impedance, rate-capacity tests and appropriate reference-electrode or in-situ methods help separate contributions. Its order does not imply that each resistance is equally important in every cell.
Separate cold discharge from cold charging
During cold discharge, polarization can pull terminal voltage to cutoff before all charge is delivered; some apparent loss may recover after warming, but that recovery must be measured. During cold charging, graphite may not intercalate incoming lithium quickly enough, allowing metal to plate. This can consume active lithium and create safety concerns. Research on anode interfaces discusses the role of desolvation and charge-transfer kinetics. “Can discharge cold” does not establish “can charge cold.”
Cathode strategies: coatings, doping and particle size
A cathode coating may improve electronic pathways or limit side reactions; doping can alter lattice and defects; smaller particles may shorten diffusion distances. Each has a trade-off: larger surface area can increase reactions, thick coatings can impede ions, and doping can change room-temperature capacity or life. Compare within the same cathode chemistry and matched loading, density, electrolyte and cutoffs, not a single half-cell result.
Electrolyte strategies: solvent, salt and interphase
Low-temperature electrolyte design must balance fluidity, conductivity, desolvation, aluminum compatibility and interphase chemistry. Lower-viscosity cosolvents, salts and film-forming additives can each improve one metric, but a lower freezing point alone does not guarantee better whole-cell capacity or life. A review of electrolyte engineering emphasizes coupled solvation and interface effects. Claims about EC, LiPF6, LiBF4 or FEC need the formulation, concentration, electrodes and protocol attached.
Anode design and plating risk
Graphite lithiation can slow in the cold. Surface treatment, carbon coating and particle or pore design can change access paths, yet also change initial efficiency, density, gassing and aging. Evaluate allowed cold-charge rate, plating evidence, capacity after warming and long-term cycling together. Smaller particles are not automatically better.
What a −20°C neutron-diffraction study actually showed
Zinth et al. in Journal of Power Sources studied a rated 1950 mAh NMC111/graphite 18650 cylindrical cell at −20°C, comparing C/30 and C/5 charging with in-situ neutron diffraction. After C/5, graphite was less lithiated. During a 20-hour rest, continued LiC12-to-LiC6 conversion supported an estimate that at least about 17% of active lithium had plated. In a separate immediate-discharge sequence, a voltage plateau and phase response gave an estimate of about 19% of rated capacity oxidized as metallic lithium. Neither estimate is a permissible plating threshold for other cells.
The engineering lesson is that similar charge input does not mean all lithium entered graphite, and a later voltage reading or teardown may miss transient plating. The cell was cylindrical and the protocol specific; it does not authorize C/5 charging of a pouch cell at −20°C. Some metal reinsertion during rest does not make the protocol safe or free of aging cost.
A reproducible low-temperature test plan
Screen materials at matched electrode loading and electrolyte with temperature-dependent capacity and impedance, then validate a full cell. Log model, lot, sample count, CC/CV limits, termination current, rest, discharge rate, cutoff, SOC and temperature; monitor both surface and ambient temperature. Cold-charge experiments require manufacturer-approved limits and laboratory safety procedures, not user attempts to override them.
Report Ah, Wh, average voltage, pulse minimum, rise in temperature and recovery after warming at clearly specified temperatures such as −20°C and 25°C. Preserve swelling, abnormal sag and fade. A plating-suppression claim needs suitable reference-electrode, in-situ or post-test evidence with detection limits. Capacity retention requires a stated denominator. Half cells, coin cells and pouch full cells should not be pooled in one ranking.
What to request from a cell supplier
For a quote, state minimum discharge and charge temperatures separately, load and pulses, charge rate, SOC window, envelope, thermal management, life target and destination. Request model-specific cold-discharge curves, charging limits, cycle protocol and sample count, protection details and applicable transport records. Qualify the target cell in the actual device rather than extrapolating a materials result.
FAQ
If a cell discharges cold, may it also charge cold?
No. Discharge capability and charge safety are separate. Some cells can discharge cold but may not be charged at that temperature. Follow the exact cell specification and charge-control requirements.
Does higher electrolyte conductivity guarantee a better cell?
Not necessarily. Conductivity is only one factor; desolvation, SEI/CEI stability, full-cell capacity and cycling matter. Different formulations and electrodes can change the ranking.
Can cylindrical-cell plating data prove pouch-cell performance?
No. That study used an NMC111/graphite 18650 cell at −20°C under a specific protocol. Pouch cells differ in materials, electrodes and thermal behavior and require their own tests.
