When a cordless tool or light electric vehicle comes in for battery design, the first question is often, “Can this pack deliver 10C?” That number on its own does not settle the choice. We need to know how much current the motor draws during start-up or acceleration, how long the peak lasts, how often it repeats, the pack temperature and the voltage at which the controller begins to reduce power or reset.
High-rate LiPo pouch cells can suit drills, power tools and some light mobility packs. Whether a particular cell will work depends on the complete pack: cell specification, series and parallel configuration, interconnects, protection electronics and cooling. Two packs with the same rated capacity can behave very differently under load.
Turn the C-rate into a current requirement
C-rate expresses current relative to capacity. For a 2 Ah cell, 8C works out to 16 A by calculation. That does not mean the cell can continuously supply 16 A at every temperature. A rating may apply to continuous discharge or to a short pulse; test temperature, cutoff voltage and cooling conditions matter. Use the data sheet for the exact model and check that its test conditions match the application.
A motor spinning freely, a brief start-up surge and a long period under load are different operating conditions. Share the continuous current, peak current, peak duration and time between pulses separately. Note low-temperature starts and operation inside a sealed housing as well.
Evaluate the cell as part of the pack
Series connections raise pack voltage; parallel connections add capacity and current capability. Actual performance also depends on cell resistance and matching, weld and connector resistance, busbar or wire size, and differences in cooling. Parallel branches do not always share current evenly. If cell condition or connection resistance varies, one branch may carry more current and heat up faster.

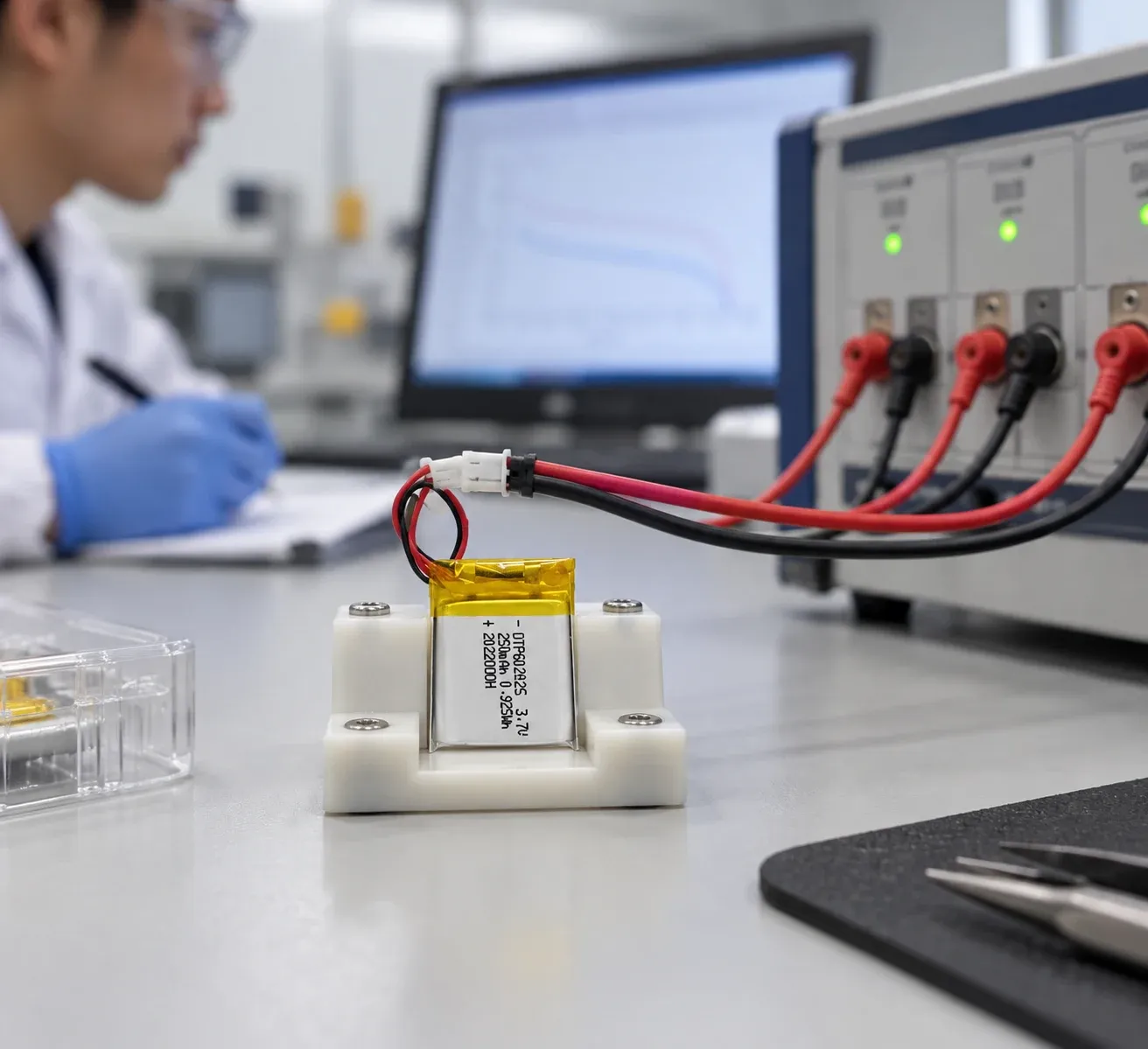

A BMS can monitor voltage and temperature and apply overcurrent, overtemperature or undervoltage protection as designed. It cannot compensate for the wrong cell choice or replace thermal design. Validate trip thresholds and response against the load waveform, cell limits, and ratings for wires and connectors. For tool packs, measure cell matching, voltage drop across connections and protection behavior on samples.
